LED Bike light conversion projects and information

This page is the main Library of information page for all my Bike Light mods and projects.
There are many links below that lead every info page on this web site
If you get lost in the library, just return to this page.
All pages have a link at the top of the page that points back to this page.

Note that I do not offer technical support for any of the mods on my web site.
Please do not email me and ask me to send you a parts list of everything it takes to make a light.
There are a couple helpful parts list links on this page.

The best way to learn is to look at my mod pages and then you will understand exactly what it takes to assemble or mod a light.
Once you know what you need, chances are you understand how to put it all together
I sell many of the parts used on my mod pages on my web store.
Check out my web store link at the top of this page for LED parts.

Note: All the Marwi lights I build and all the Marwi mods below run on 3.6 volt lithium Ion battery packs.
You must run my designs on 3.6 volt battery packs.
I do not make or have any driver designs for higher voltage battery packs

I get asked all the time, "How can I run these lights on 7.2, or higher voltage battery packs"
The short answer is: "I don't know"
You can go to the MTBR DIY lights forum to get help with questions like that
There are lots of smart people on this forum that experiment with many different driver designs
Here's a link to the MTBR DIY light forum.

Click on the images for a larger image

Magic Shine to Marwi mount adapter
Click on the images for a larger image
Image magic shine light

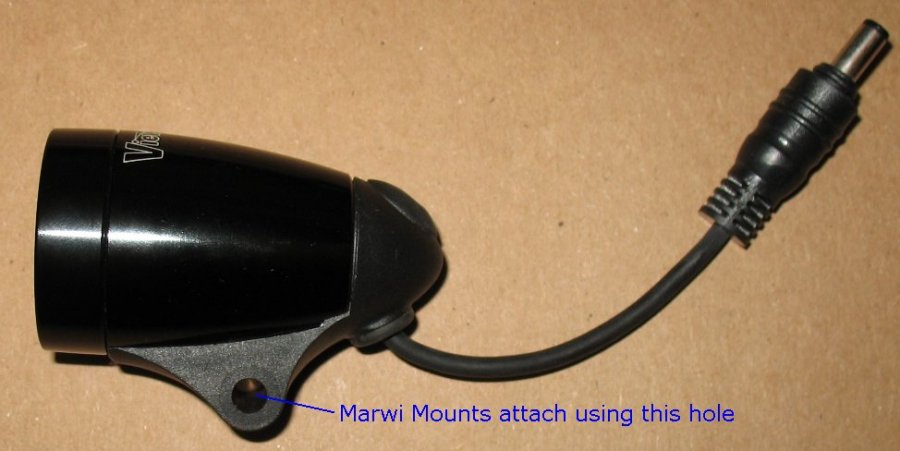

I make adapters that let you mount a Magic Shine light to a Marwi handlebar or helmet mount
More info on this page
Go here for the Magic Shine adapter installation and info page

-

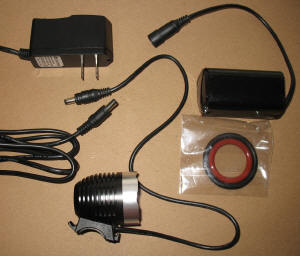

The Magic Shine bike light
Click on the images for a larger image

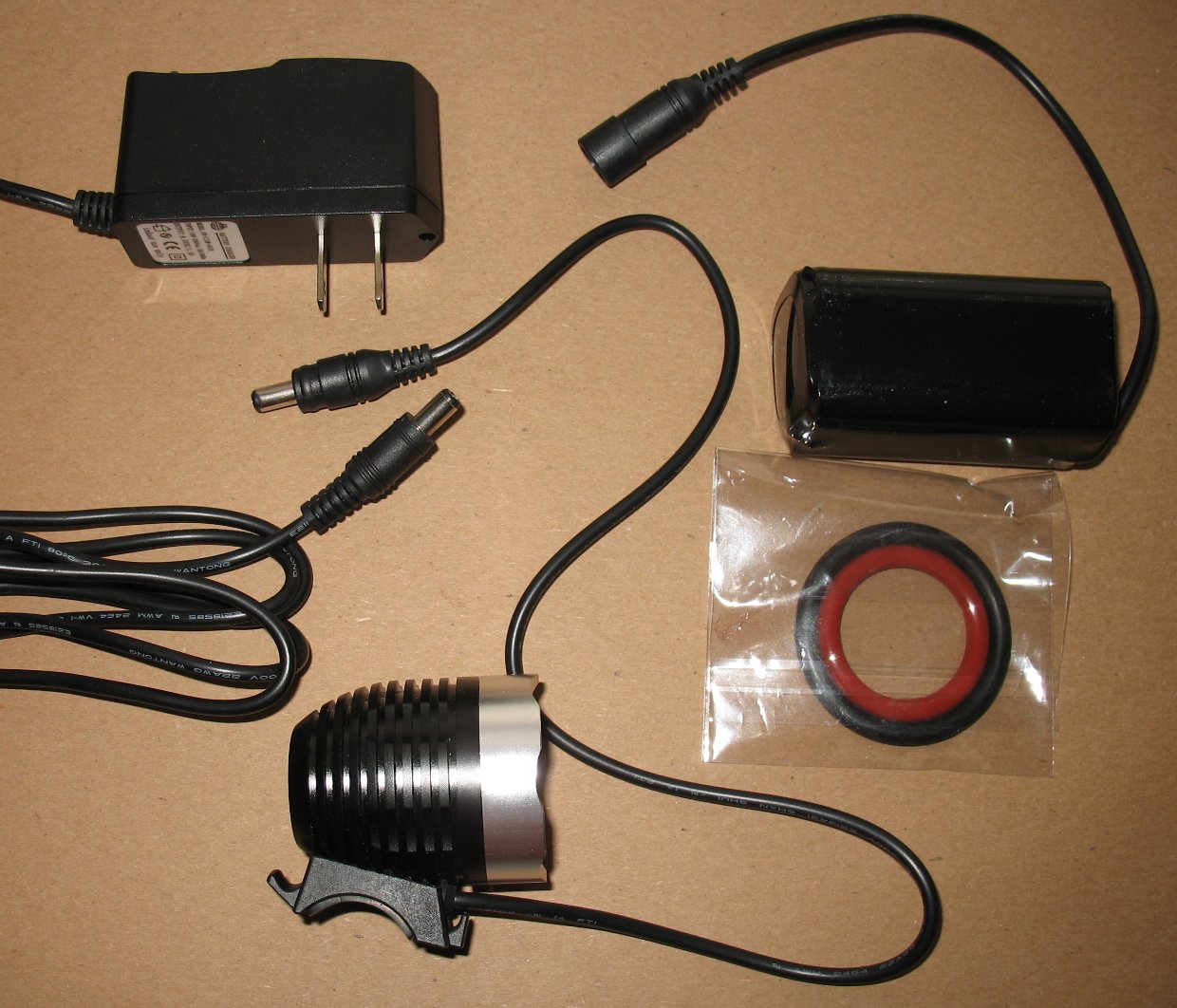

I tear down a Magic Shine light to see what's inside and how they are made
The Magic shine light tear down page

-

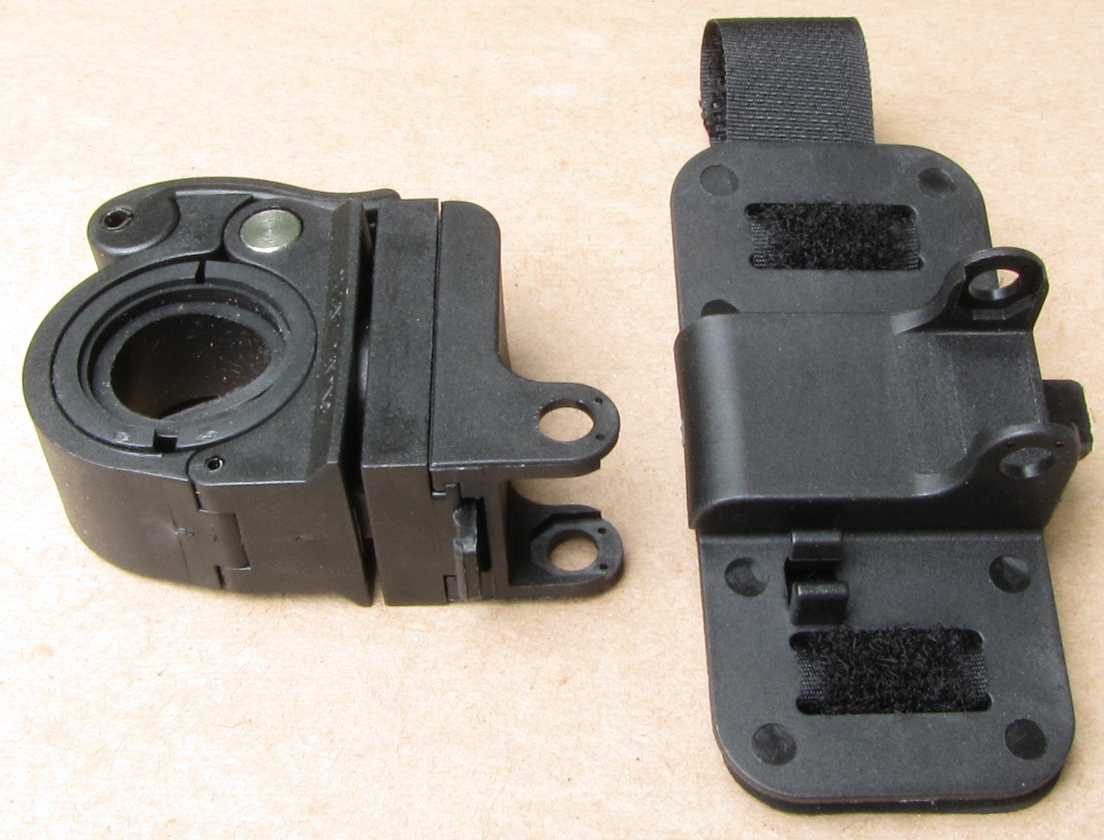

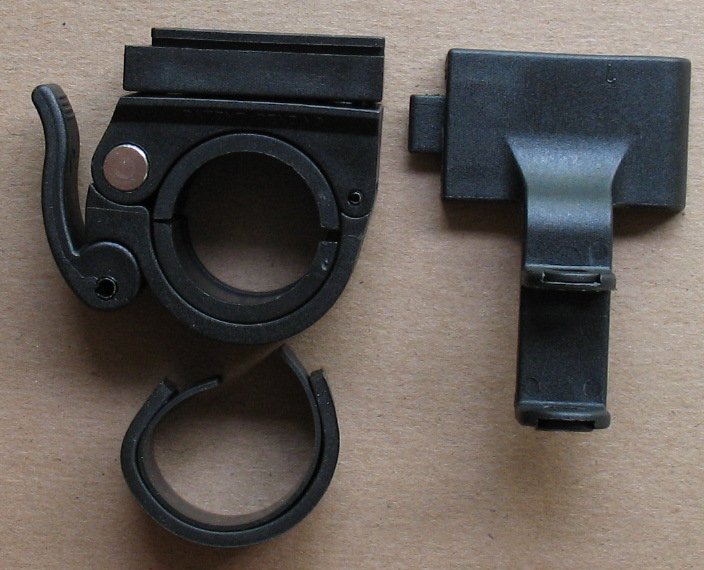

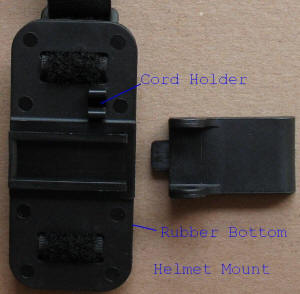

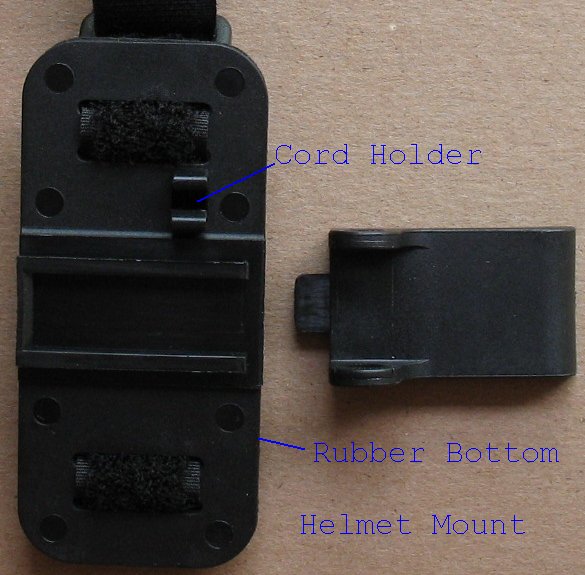

Marwi Helmet and Handlebar mounts info
Click on the images for a larger image
Image image

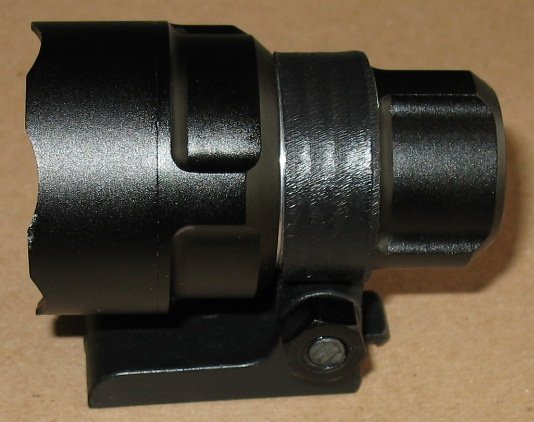

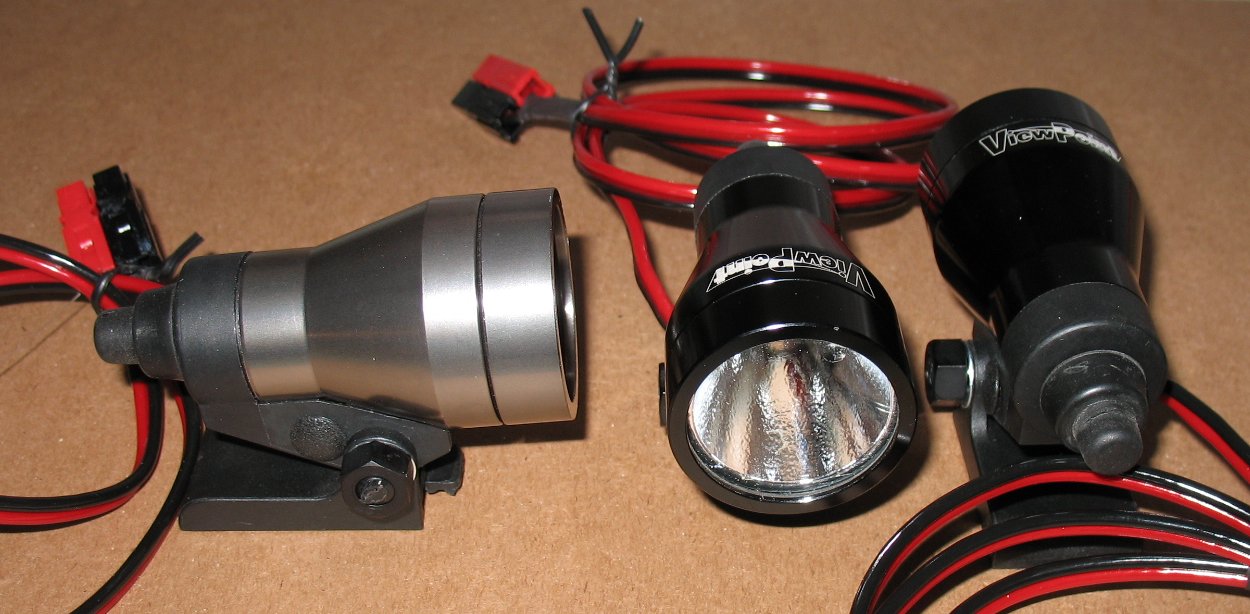

I have a bunch of info and big pictures of different lights and how the Marwi mounts look on helmets and handlebars

Click here for Marwi Handlebar and helmet mount info

I stock the Marwi mounts on my web store

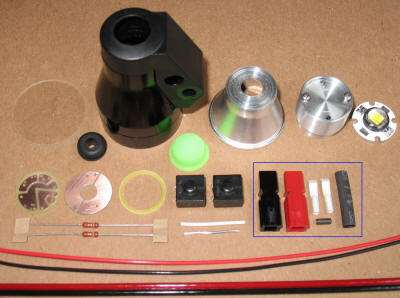

Parts listings for the Marwi LED lights that I make
I get asked all the time for a parts list of all the items I use to build a light, so here you go
You can add all these parts to a shopping cart with one button on my web storte


NEW - Parts listing for the Marwi Bullet Housing XML lights


Parts List information page for the XML Marwi lights

Assembly Instructions page for the new XML Marwi

Info page for the 2800ma Multi Mode driver board used in the XML lights

Owners of Marwi LED lights information page



Parts listing for the Marwi Bell Housing SSC P7 lights


Parts List page for the SSC P7 Marwi lights




This is the simple resistor version that I used to make and is no longer being made
Parts List #1

-

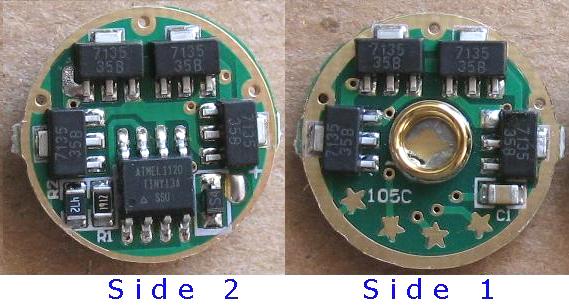

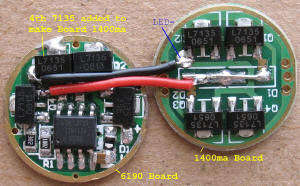

2800 ma Multi mode driver board


2800ma Multi Mode driver board info page


Marwi Halogen to LED history and conversion info
This section shows the history of my mods on the Marwi Halogen light bodies

Click on the images for a larger image

Info on the Marwi view point light bodies I use for LED conversions

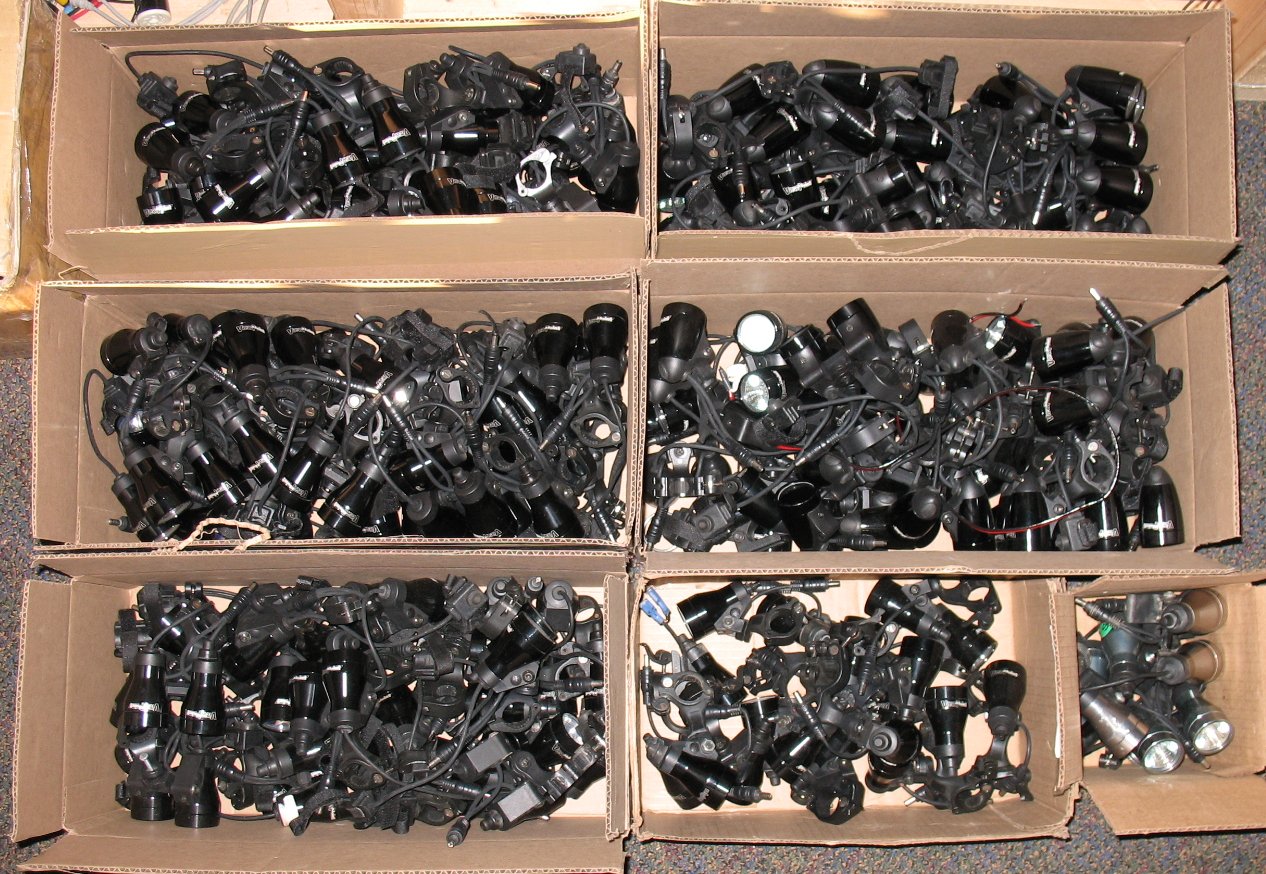

This is a picture of just part of the huge stash of Marwi halogen lights I discovered and purchased
I have several more boxes not shown in the photo above.
These lights were found piled all together in big boxes at the Marwi USA warehouse.
They were no longer being sold because they were old school halogen lights.
I purchased the complete New old stock inventory from Marwi USA.
There is some minor cosmetic damage on some of the bodies from being shipped all together in big boxes.
Cosmetic damage would be slight scratches and scuff marks, but nothing serious.
Just giving everyone a heads up in case you receive a light and wonder why there is a small bit of cosmetic damage.

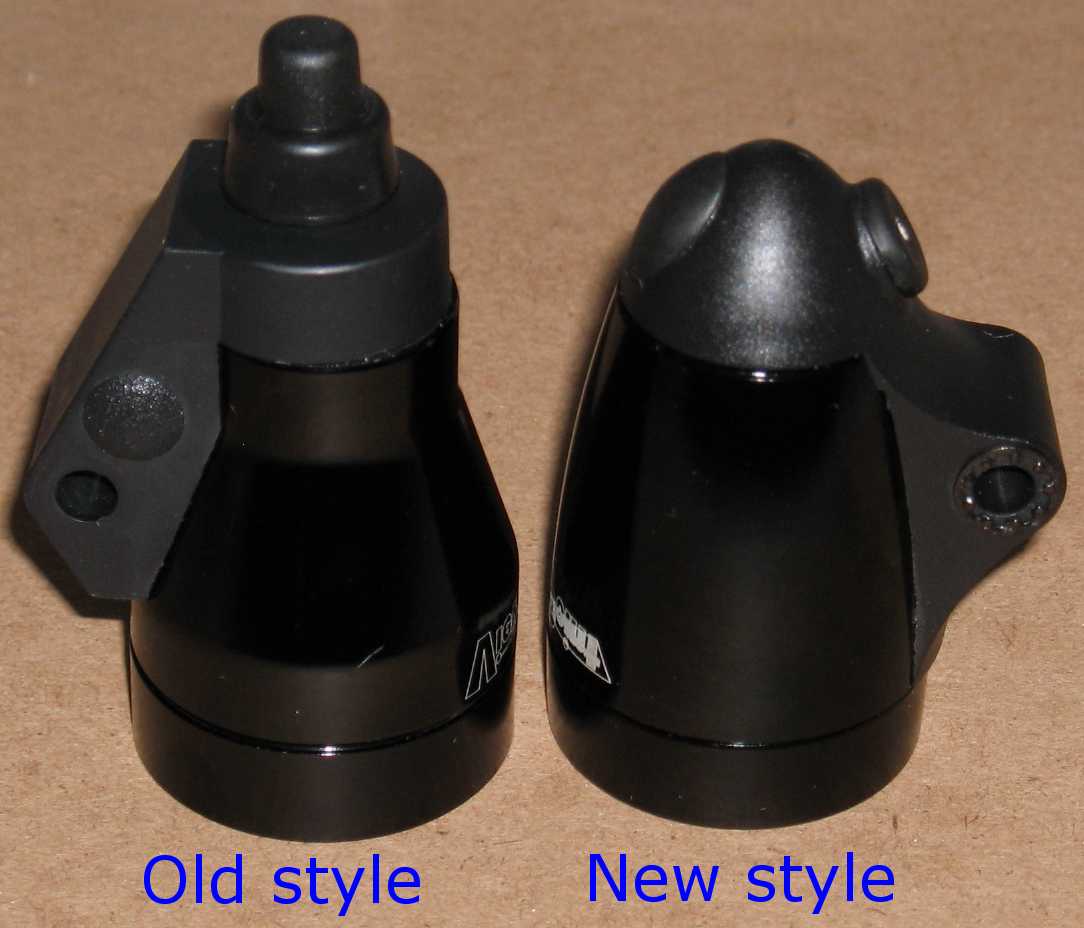

There are the two styles of Marwi light bodies
The older style is more of a bell shape
The new style is more of a bullet shape

This page has more info on the two body styles

These lights are new old stock and being recycled because they are still a great platform for LED lights
I tear these lights apart and re-use the bodies
I sell several of the parts that I remove from these lights on my web store.
Some of the parts I remove and sell are:
MR11 - 6 volt halogen bulbs
MR11 ceramic receptacle and Judco switch
Old style Marwi handlebar mounts

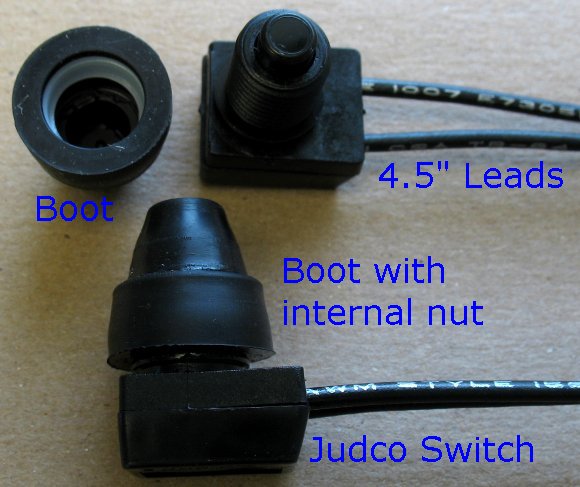

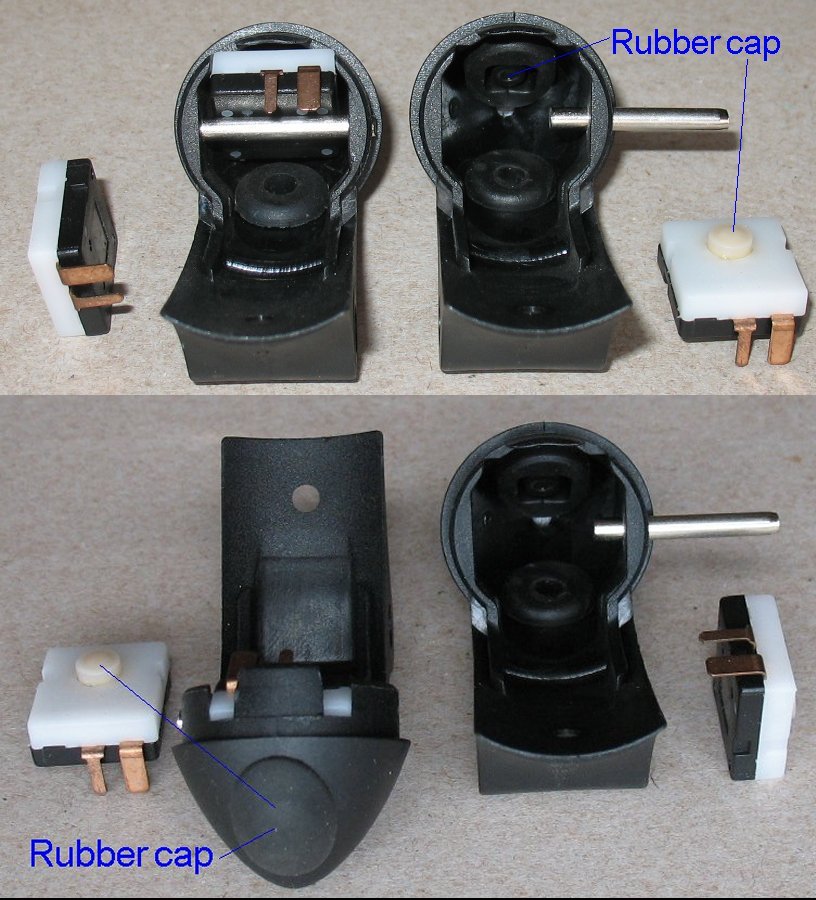

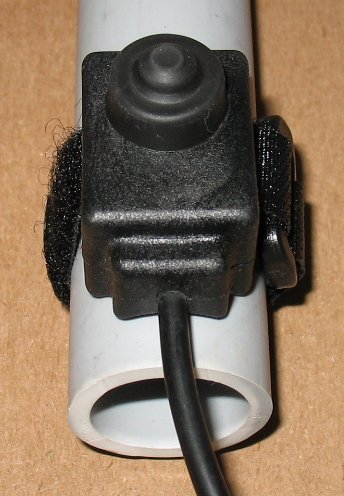

External handle bar switch housing with Judco SPST switch
I also sell both styles of Marwi light bodies

I have converted many Marwi View Point halogen lights to LED bike lights
These lights were sold by Performance and on the Marwi USA web site as 6 volt Halogen bicycle lights.

The Marwi lights have progressed through many different development phases.
This page contains links to many pages of info on how these lights have progressed to their current state

Down below I have more info on the two body styles and how I convert them to LED lights

-
This section shows the evolution of the Newer Bullet shaped housings
I use these housings to make multi mode XML LED bike lights

Image Image

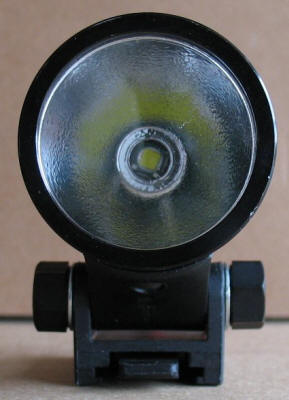

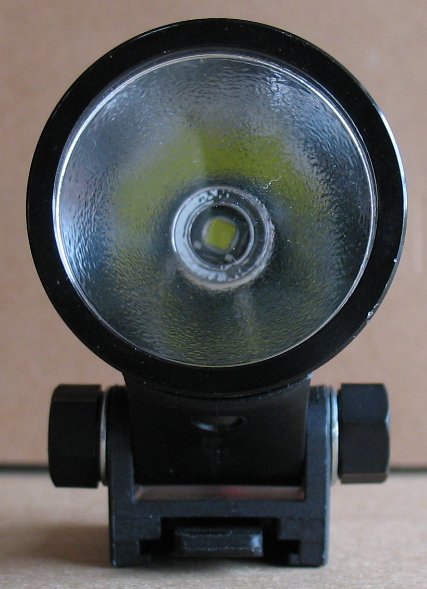

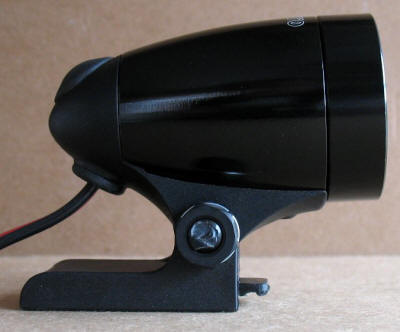

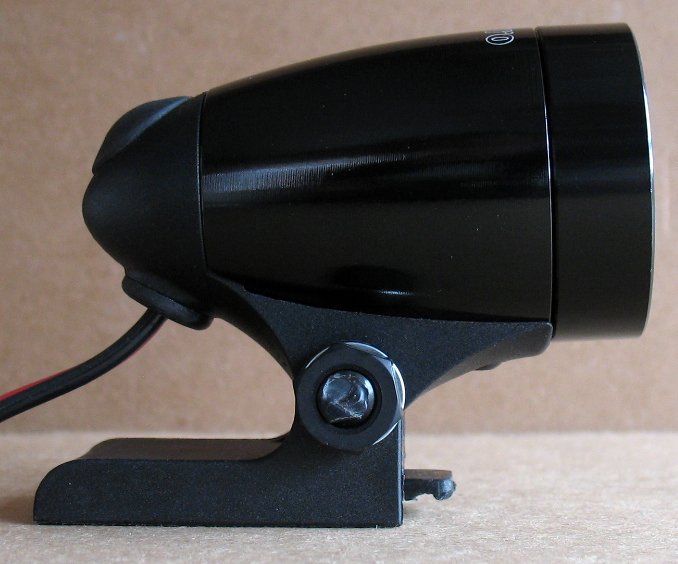

Here is a couple pictures of a XML LED Marwi light

This is a new design as of 12/2011
I just picked up the new heat sinks from a machine shop that allow these lights to be converted to XML LED lights
I have been testing one of these lights for several weeks of night riding and I really like the design
See the beam shots and video section below to see these lights in action

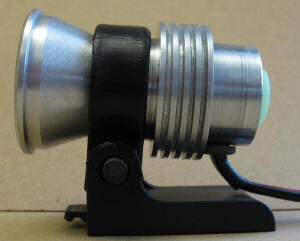

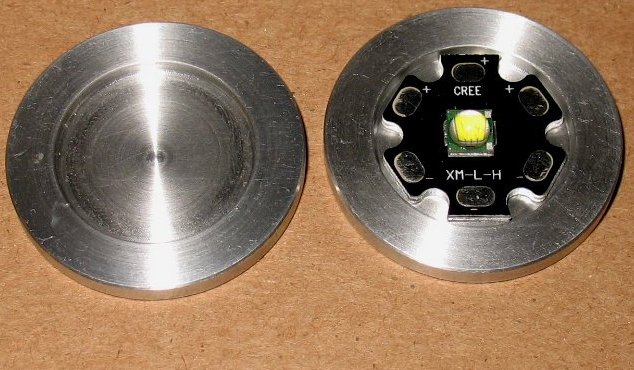

This is the heat sink I use for the XML LED

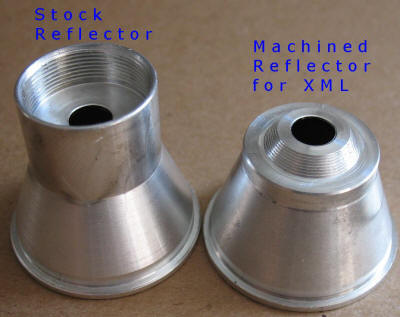

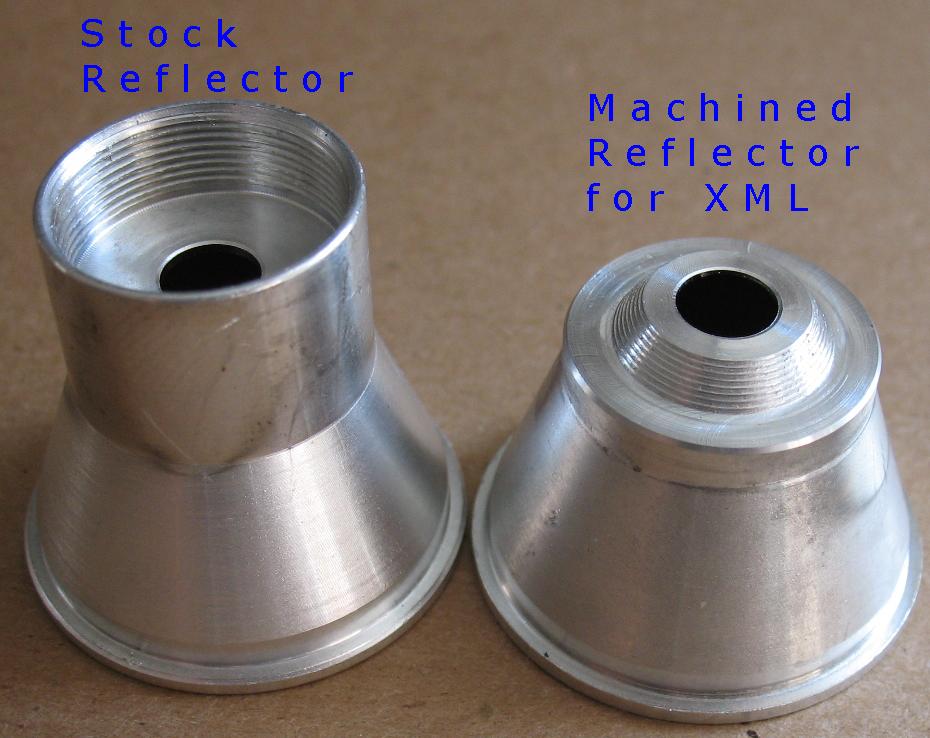

On the right is a XML reflector after it has been machined

The page below has tons of pics and info on how I convert these lights
The current build instructions for this light are on this page

Info on the multi mode driver board I use in these lights can be found on this page

-

This section shows the evolution of the Older Bell shaped housings

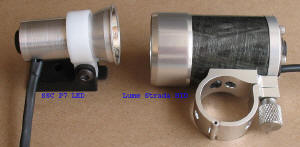

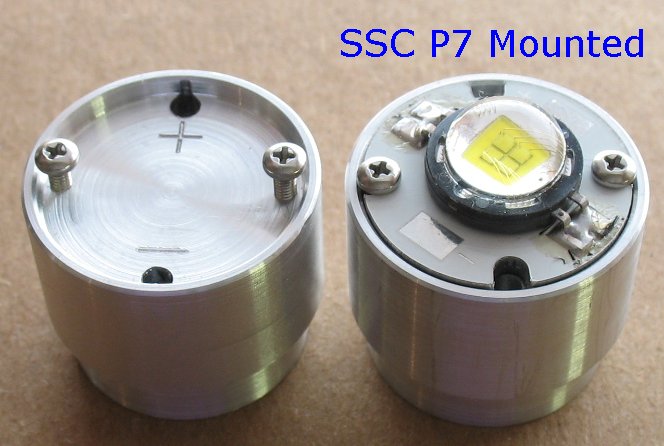

I use these housings to make SSC P7 LED bike lights

This is a picture of Marwi Halogen lights that have been converted to SSC P7 LED lights.
See the beam shots and video section below to see these lights in action

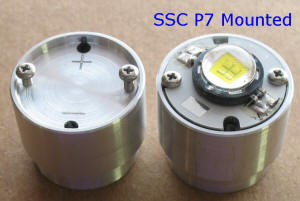

My Custom made P7 heat sinks.

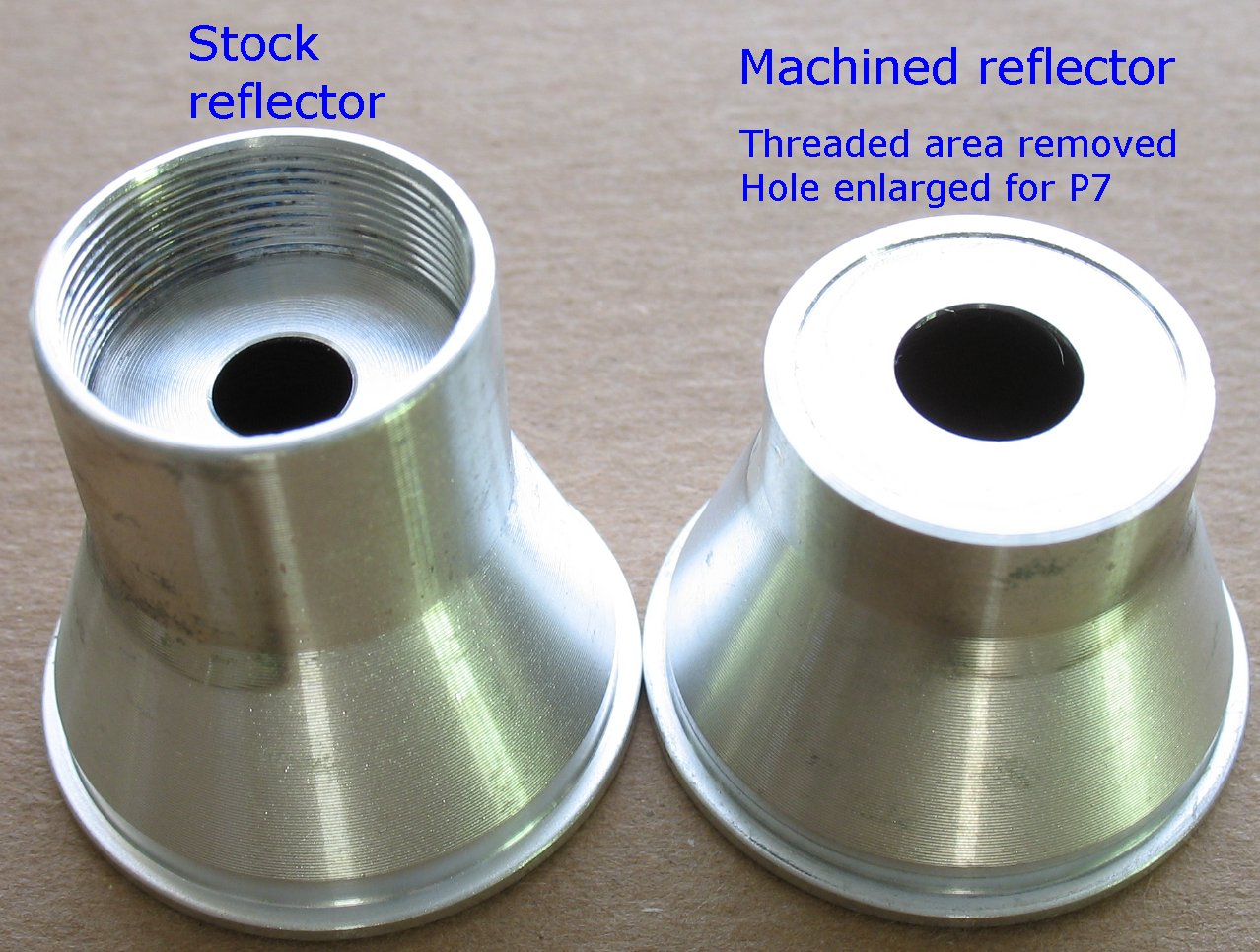

Here's a shot of the reflector I use in the Old style Marwi bodies, before and after it has been machined for a P7



Marwi P7 Conversion info pages
The pages below show the evolution of the modded Marwi lights.

Marwi View Point Halogen conversion page #3

Marwi View Point Halogen conversion page #2

Marwi View Point Halogen conversion page #1

An older page showing how parts fit together in a Marwi light body




Different P7 driver configurations I have experimented with


Note that the internal driver configuration I use has gone through many phases
As you can see below, I have experimented with several driver designs

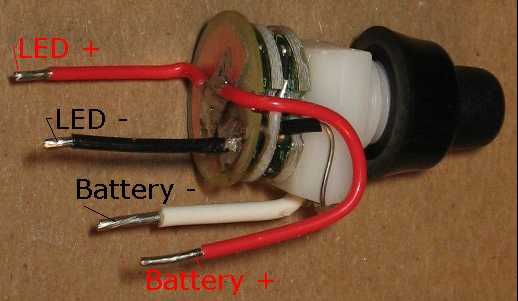

Most recent driver information

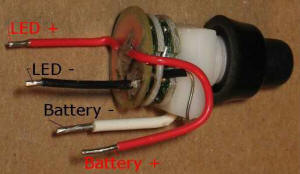

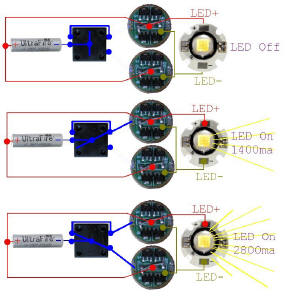

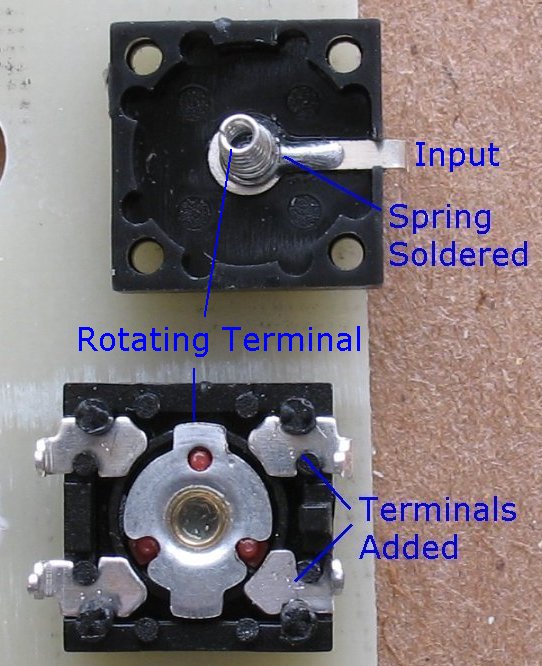

SPDT Judco switch with two 1400ma current limiter boards

These driver assemblies are made with a Judco SPDT switch and two 1400 ma current limiter boards.
This is the most recent P7 driver for the Marwi SSC P7 lights

This page has info on how I build the dual 1400ma driver assembly

An older version of the dual 1400ma driver assembly



Older yet P7 driver information
Note that the driver boards below all use a clicky switch with a colored tail cap
I no longer use this type of clicky switch driver
This section is here for informational purposes only

Resistor based driver board using a clicky switch

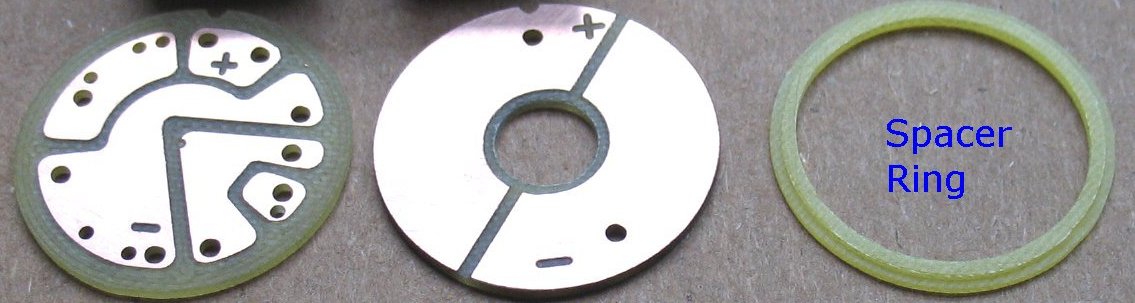

How to assemble version 2 of my resistor based driver board

How to assemble version 1 of my resistor based driver board


The pages below show the evolution of the dual 1400ma current limiter boards with clicky switch
Last version - Dual 1400ma current limiter board driver using a clicky switch

Dual 1400ma current limiter with clicky switch - version 3

Dual 1400ma current limiter with clicky switch - version 2

Dual 1400ma current limiter with clicky switch - version 1

-

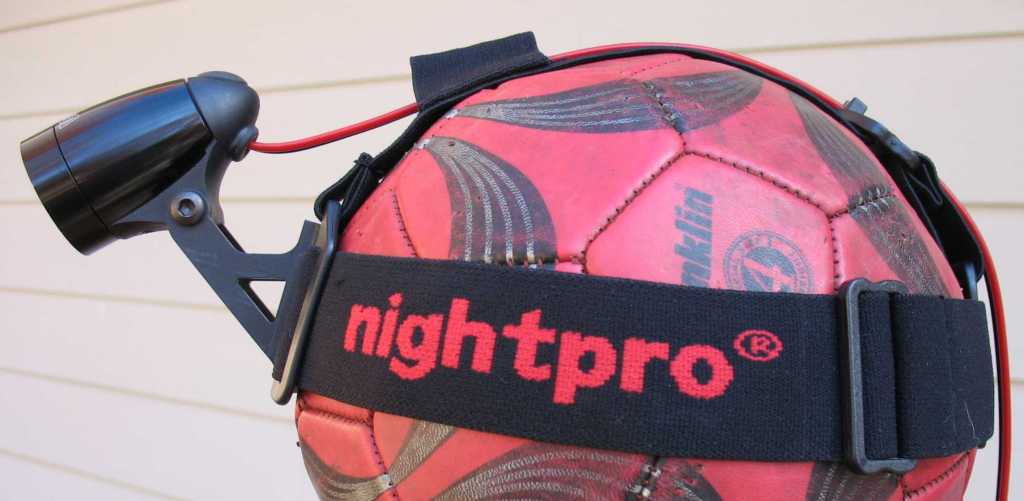

The Marwi HeadShot
Mount your Marwi light body on your head.
You can also mount a Magic Shine light with my Magic Shine adapter
More info and pictures on this page


Beam shots, Videos and Animations

Beam shot comparisons between a Marwi Bell housing P7 LED and a Marwi Bullet housing XML LED

P7 LED and XML LED beam shots

Animated gif of the P7 and XML lights on the page above

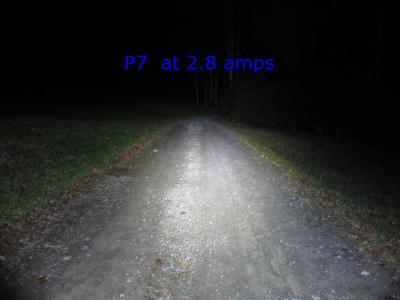

Beam shots of several P7 lights

Animated gif of Marwi SSC P7 LED low and high modes
That stump on the mound in the background is 63 feet away from the camera
Wait for the animation to load and then it will change automatically between Low and High
Marwi Low-High animation



Beam shots of my Triple P7 light

Wait for the animation to load and then it will play in a loop
Beam shot animation of the Triple P7



This page shows the difference between HID and P7 lights
More Beam comparison images



Video Page

I have been posting so many videos lately that it's much easier if you just go directly to my Mountain bike Chanel on YouTube
There are a ton of Day and Night ride videos on YouTube at the link below
Link to my Mountain Bike channel on YouTube

I also have a page with some Mountain bike videos here
You can see night ride videos using the Marwi LED lights here.
My Video page link




My Triple P7 Project

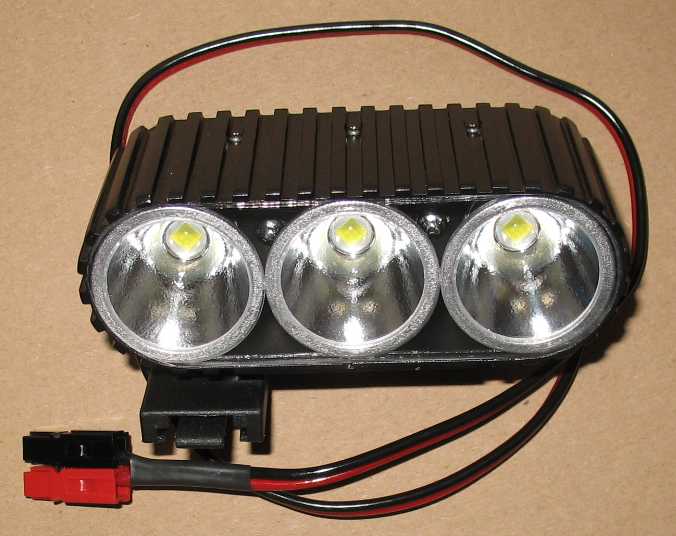

NEW - My triple SSC P7 light project

Note - This light is not for sale
I made it for me and it was a ton of work.

Beam shots of my Triple P7 light

Wait for the animation to load and then it will play in a loop
Beam shot animation

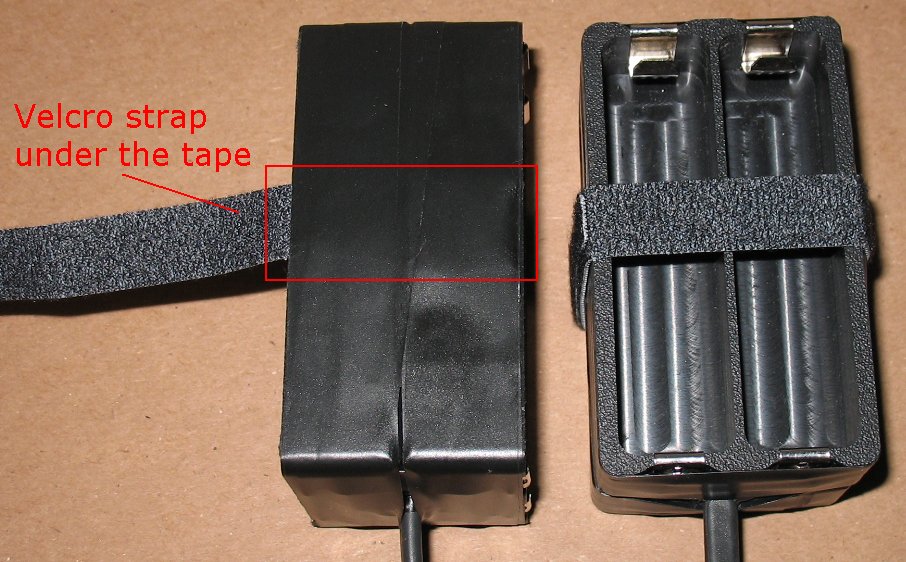

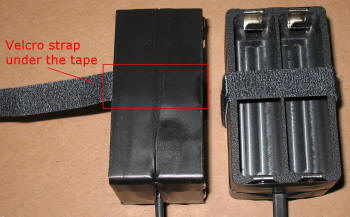

Battery pack stashing info
Click on the images for a larger image

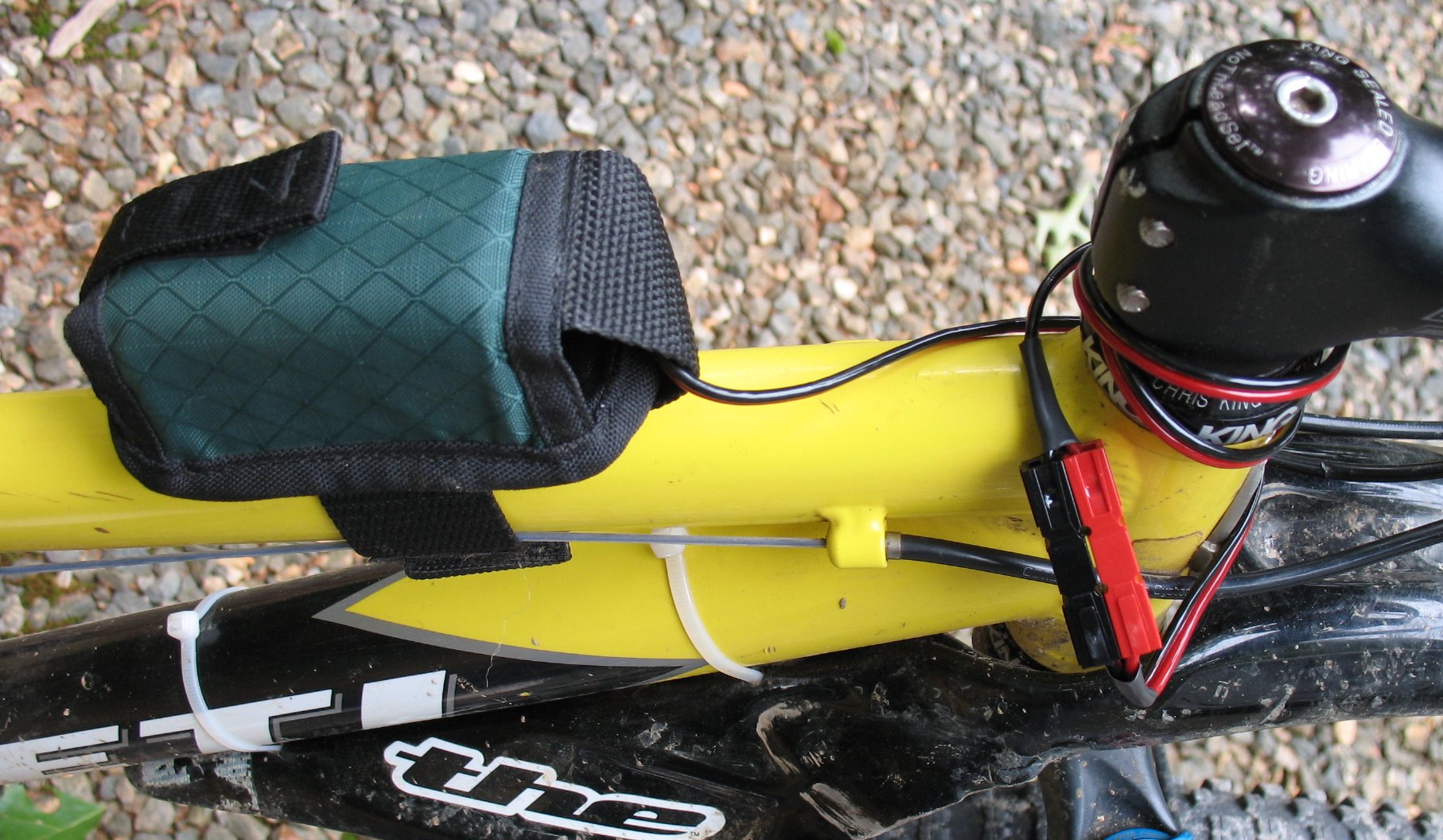

A few ideas on where to stash handlebar mounted battery packs


Battery Wiring info
Click on the images for a larger image

  Image  Image

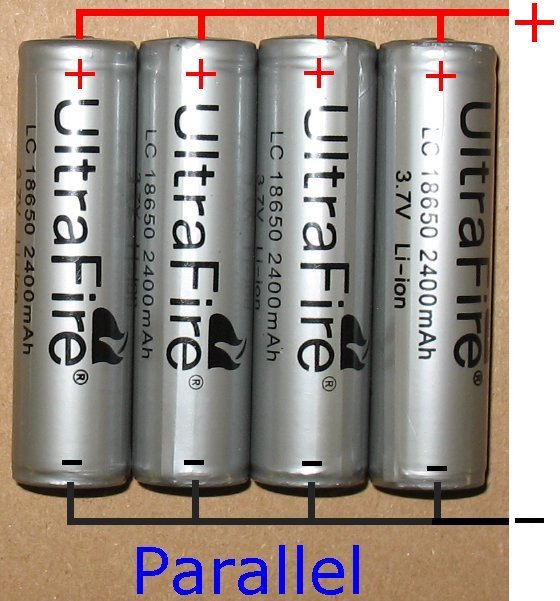

How to wire battery packs in - Parallel - Series - Series/Parallel

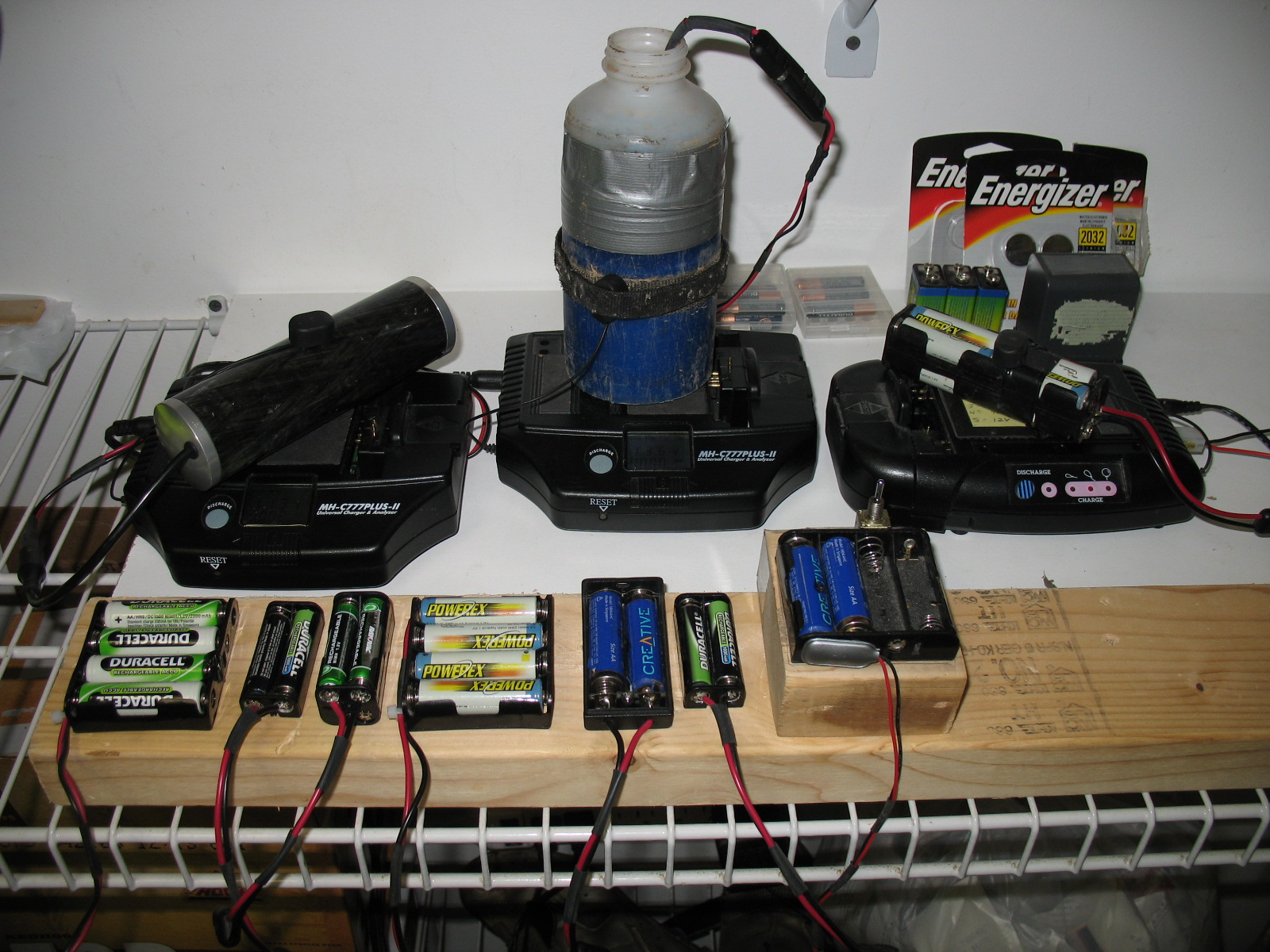

Battery Holder info
These are just some battery holder experiments I have attempted.
Note that I do not make and sell 18650 battery holders due to the high labor cost involved in making them.
Click on the images for a larger image


These proved to be a much better design than my first Battery holder prototypes

Assembling the new style 4 x 18650 Battery Holders



Note that the battery holder style below proved to be too much labor for most folks to assemble.
Another problem was that people were cranking down the big nut way too much
This would rip the threaded end right out of the battery holder.
I have discontinued making the battery holder below.

Assembling Prototype2 Battery Holders

Prototype1 18650 battery holder info


Improving the clicky switch performance
Click on the images for a larger image

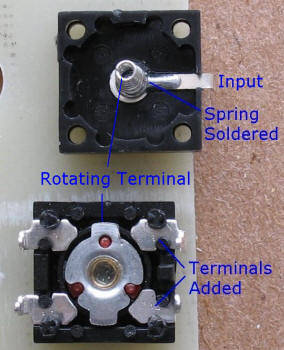

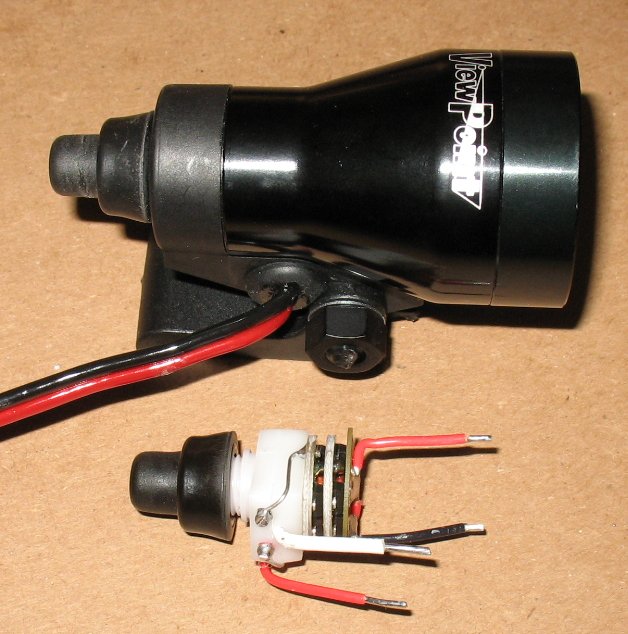

The clicky switches I used in some of my mods can be greatly improved by adding more terminals to the switches.
More terminals = more contact surface area, more current carrying capability and greater reliability.



A clicky switch mod that adds two more terminals to improve performance
This mod was used on my resistor based driver boards
Clicky switch mod #2 - Two terminals added



A clicky switch mod that adds one more terminal to improve performance
This mod was used in my dual 1400ma Hi-Lo board mod
Clicky switch mod #1 - One terminal added



Marwi switches
Click on the images for a larger image
Image Image

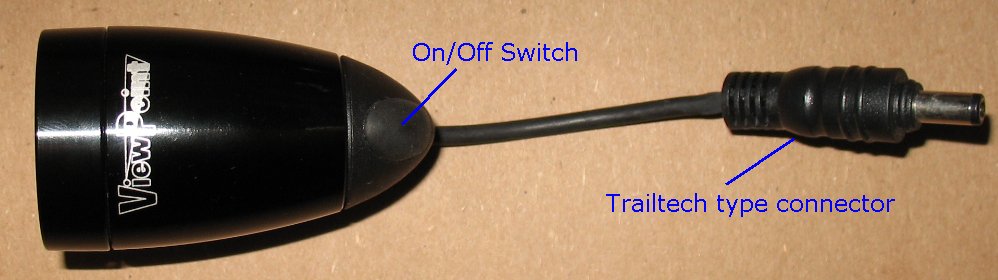

Original Switch replacement on Marwi lights - Judco SPST switch with Rubber boot
 The old Marwi lights had a halogen bulb with a ceramic bulb base and wire assembly.
The wires were crimped to the switch contacts and it was difficult to remove all the halogen stuff without messing up the switch contacts.
This switch has 4.5" leads and made it much easier to replace in my SSC P7 Marwi conversions.
I stock the Judco switches and boots on my web store if you need to replace this switch.

-

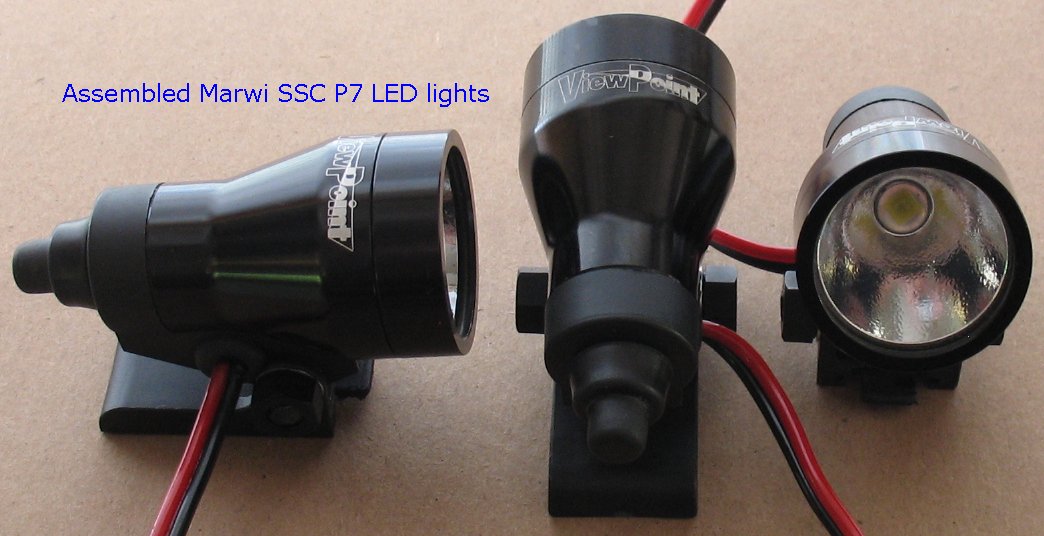

This page has info on the Marwi external switch housings and the Judco switch inside.


Old and new style Marwi light body info
Click on the images for a larger image

Go here for more info and pictures on both body styles
-

Go here for more info on using the Judco Flat style switches with the Marwi Bullet shaped housings

-

Converting DX flashlights to bike lights
Click on the images for a larger image
Image Image

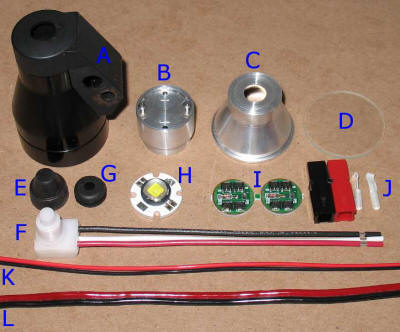

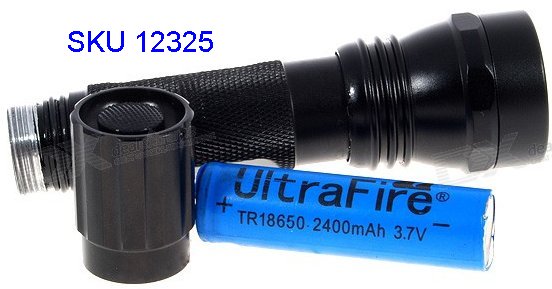

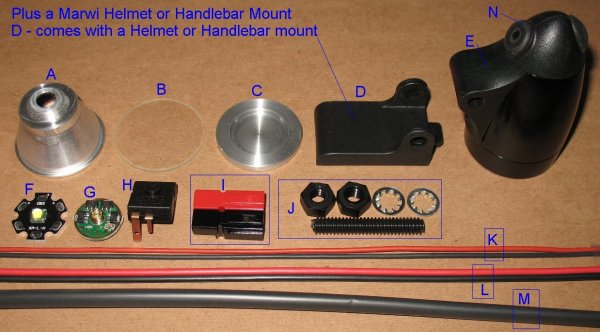

I take an empty DX flashlight shell and convert it to a SSC P7 LED
DX flashlight Conversion #2

-
Click on the images for a larger image

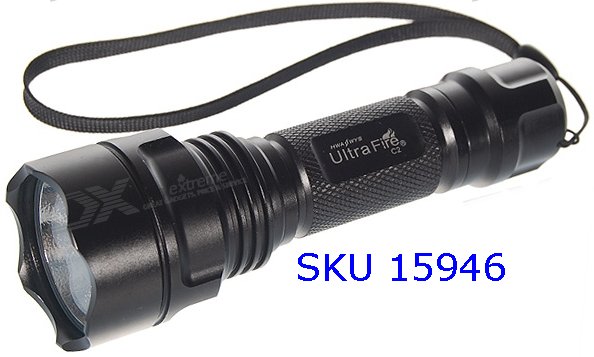

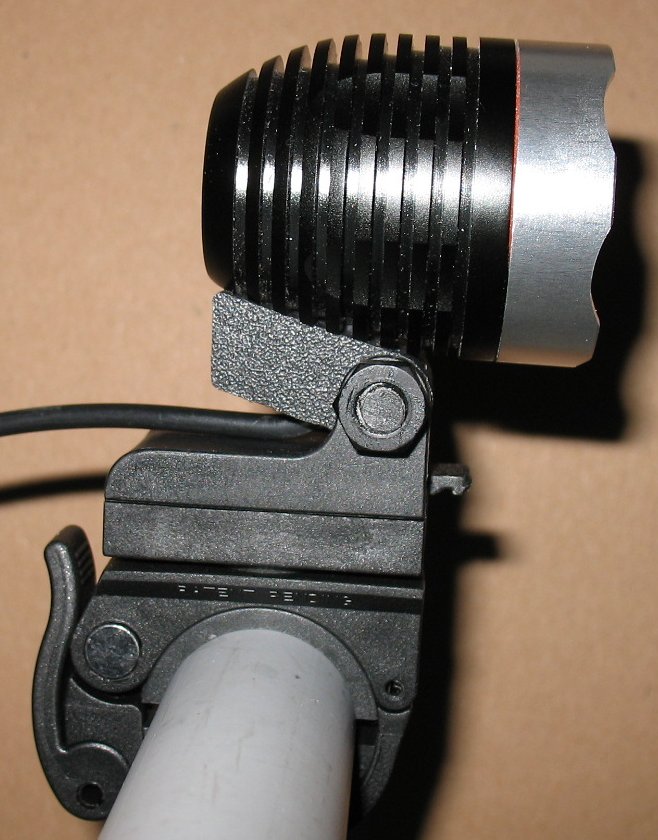

I took a stock P7 LED flashlight from deal extreme and machined it into a 3 inch long bike light.

DX flashlight Conversion #1

Building a heat sink/mount for the LED



Anderson PowerPole connectors
Click on the images for a larger image

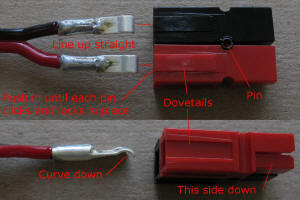

More info on Anderson PowerPole connectors

I stock these on my web store


Batteries and Battery chargers
Click on the images for a larger image

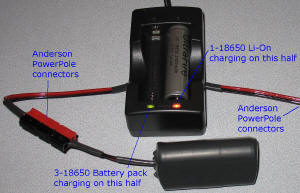

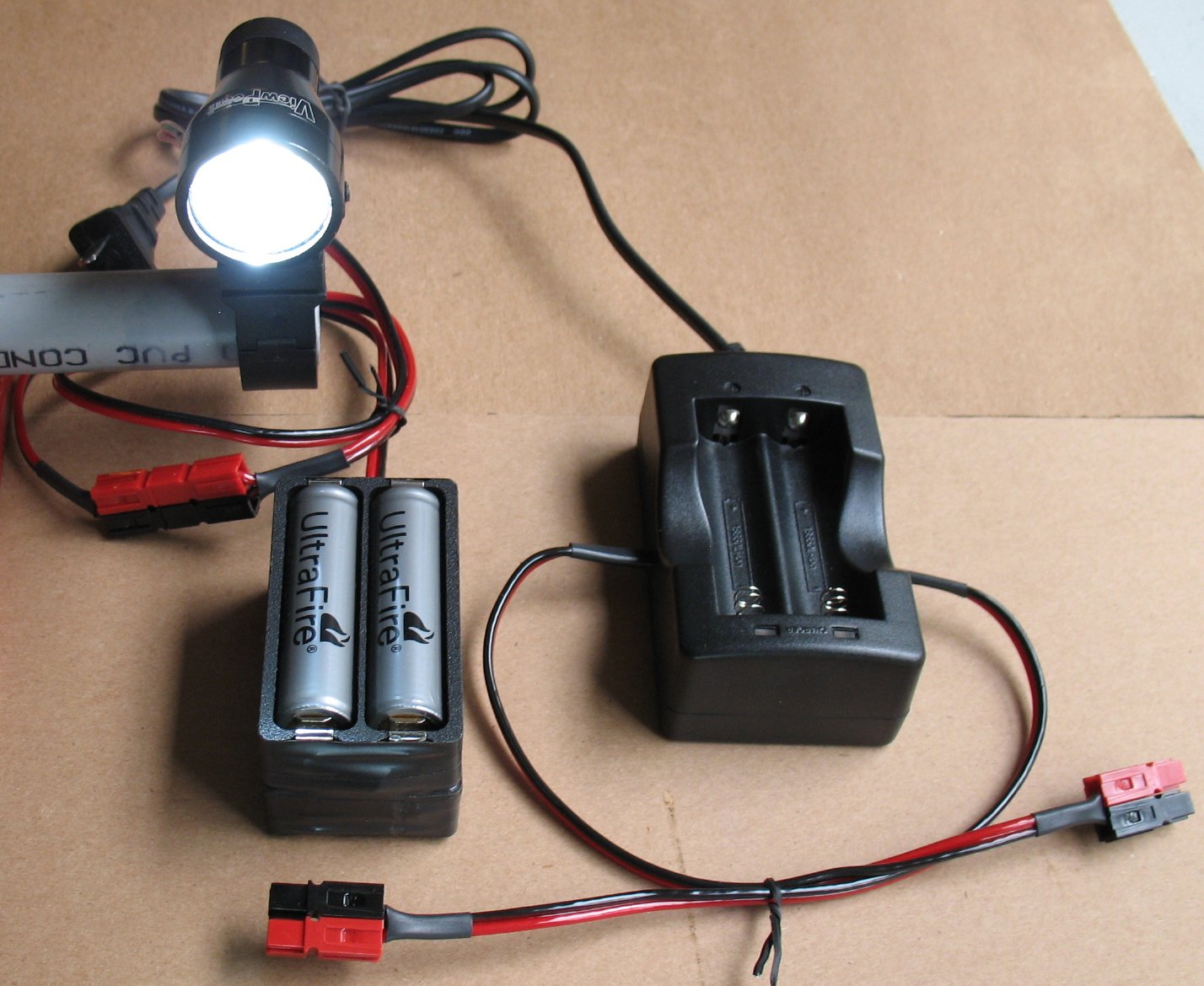

Converting a dual Lithium Ion charger to charge 18650 battery packs

-
Click on the images for a larger image

Some of my lights, Chargers and batteries


Bike lights and Battery packs sizes and weights
Click on the images for a larger image


Bike light and battery pack weight and size comparisons

Click here for Marwi SSC P7 weights page



Tools
Click on the images for a larger image

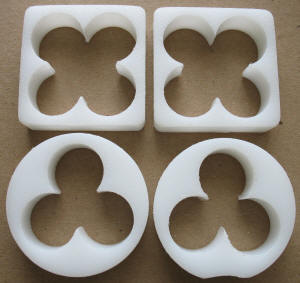

Making HDPE battery soldering tools
I made these tools to hold 18650 batteries together in a group so they could be soldered into battery packs

-
Click on the images for a larger image


Current measuring tool


Misc projects
Click on the images for a larger image

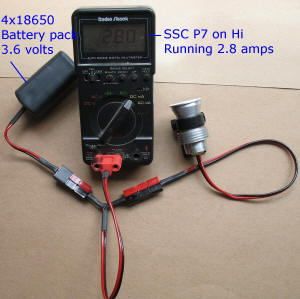

Making a 5 way/2800ma current limiter assembly


Some of my Homebrew designs
Click on the images for a larger image


My SSC P7 LED design
Note that after taking this design to a couple machine shops, it cost way too much to have these lights made.
I now recommend using the Marwi lights as DIY projects.

SSC P7 Bike light design page 3

SSC P7 Bike light design page 2

SSC P7 Bike light design page 1



My Bikes
Yeti SB95
My Bikes
-
Thank you for visiting my Bike Lights page, you are visitor number





Home - Ordering Information - Ordering Information - PayPal info - Returning parts - Search the Hoffman Amps parts catalog
What's New - Q and A - Links - Shipping Info/policy - E-mail Me - Amplifier Service Technicians - About Hoffman Amps
Sound Clips - LED Bike light build info - Guitar Rig and Behringer FCB1010 info
Create your own custom Turret lug board

The Tube amp Library of information - Charts - Diagrams - How To's - Projects
Click the link above for Tube amp info, Schematics, Board building information, Projects, Mods, Transformer diagrams, Photo's, Sound clips.
There are hundreds of pages of Tube amp information on my library page.
Check out our huge library of Tube Amp Schematics here

Please visit my Tube Amplifier Forum
Here's the place you can go to ask tube amplifier questions.
You will find a large community of friendly amp builders at the link above.

@ MEMBER OF PROJECT HONEY POT
Spam Harvester Protection Network
provided by Unspam
