Probotix boards |
|
| Back to main CNC page | |
| - | |
| Click on the images to see a larger image | |
 |
 |

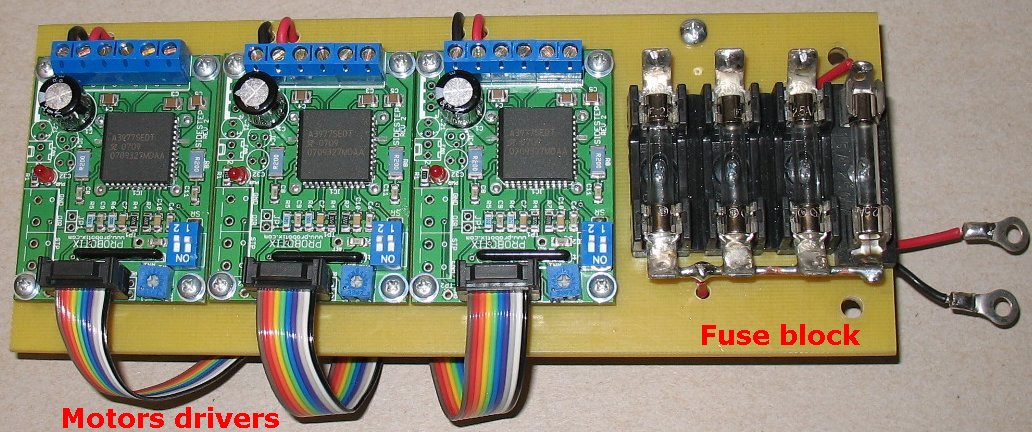

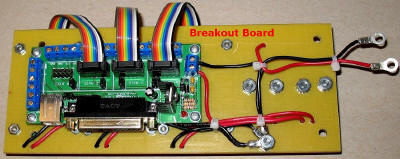

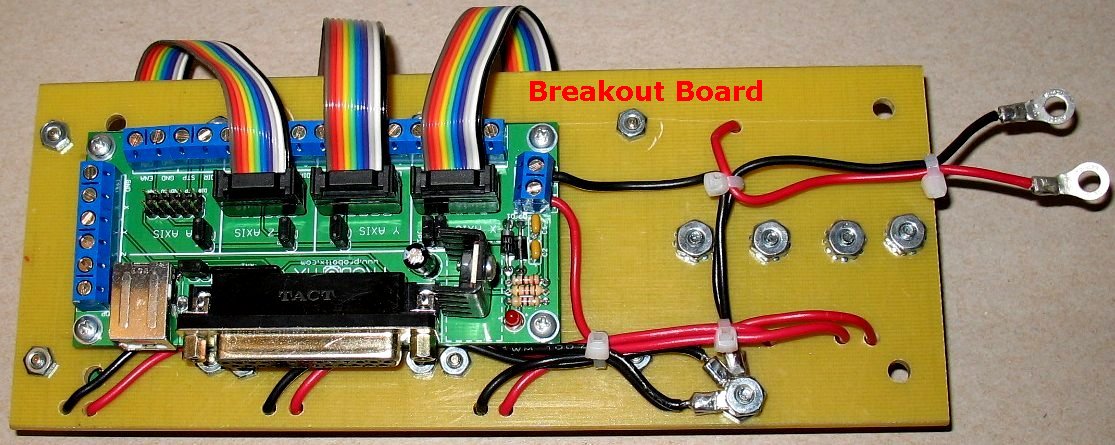

| I built a board from .125" thick G-10 Garolite to hold the motor driver Boards, fuse block and breakout board. | |
| Click on the images to see a larger image | |
 |
 |

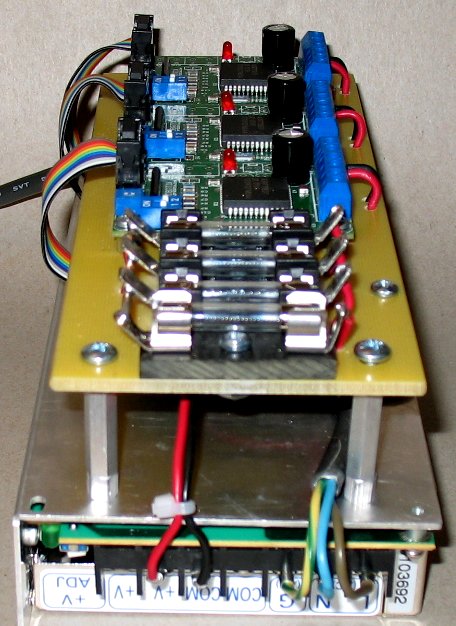

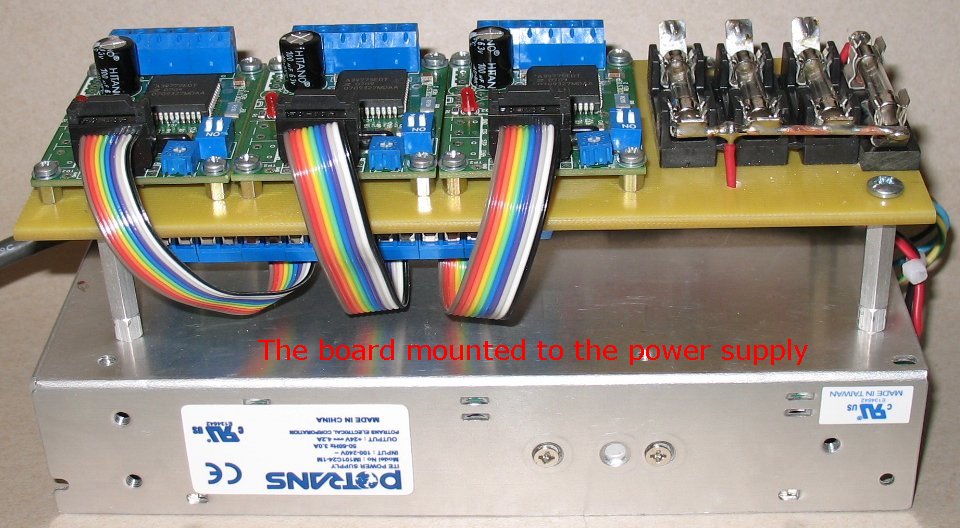

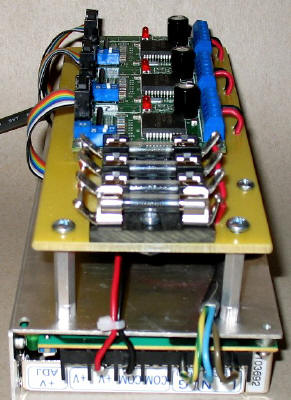

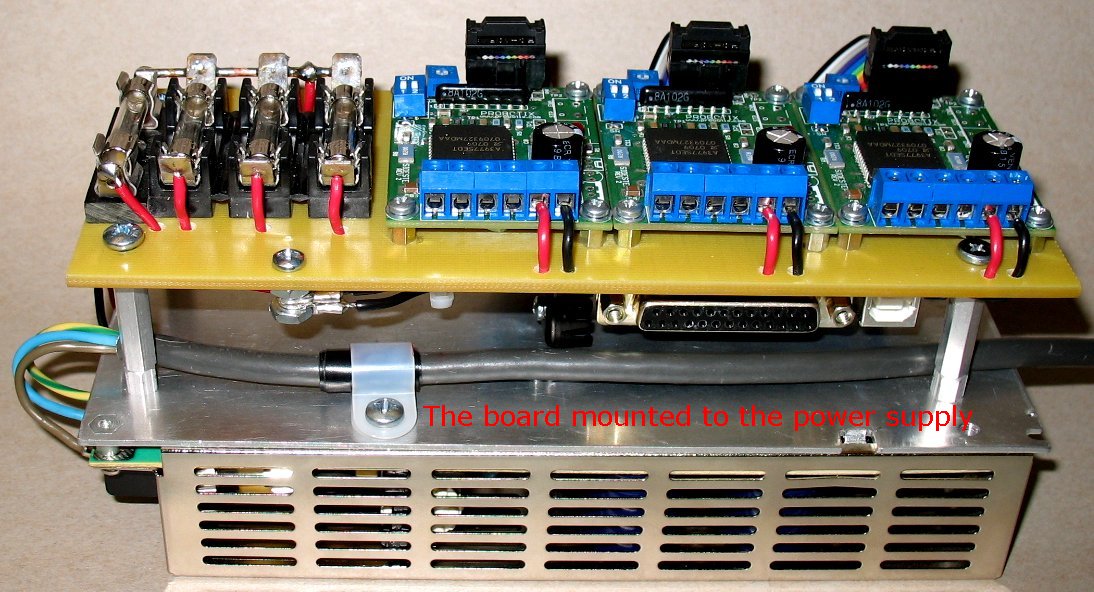

| The board sits on standoffs, piggybacked to the power supply. | The board sits on standoffs, piggybacked to the power supply. |
| Click on the images to see a larger image | |
 |
 |

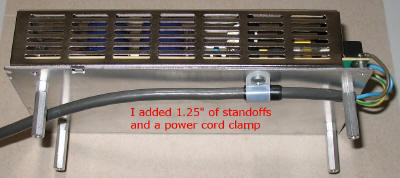

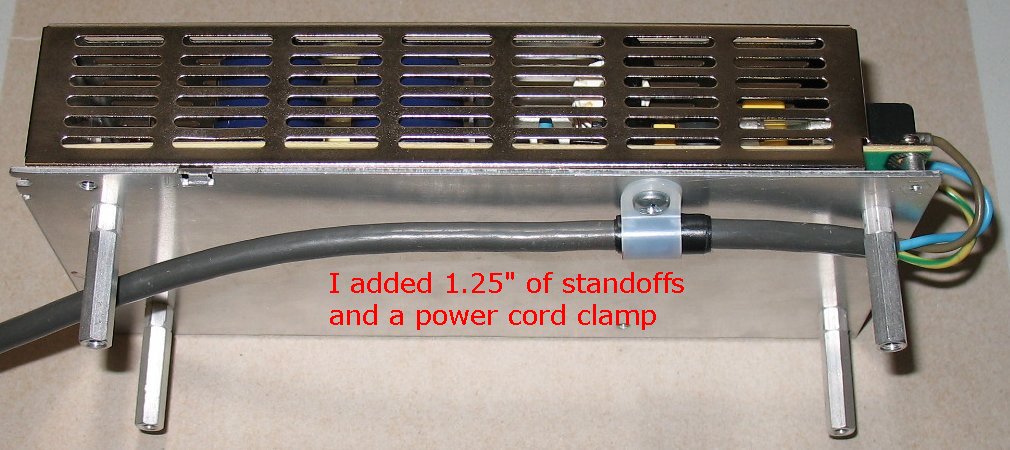

| Standoffs drilled and mounted to the power supply case |

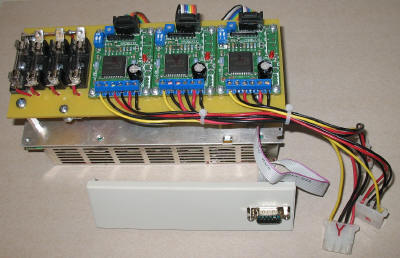

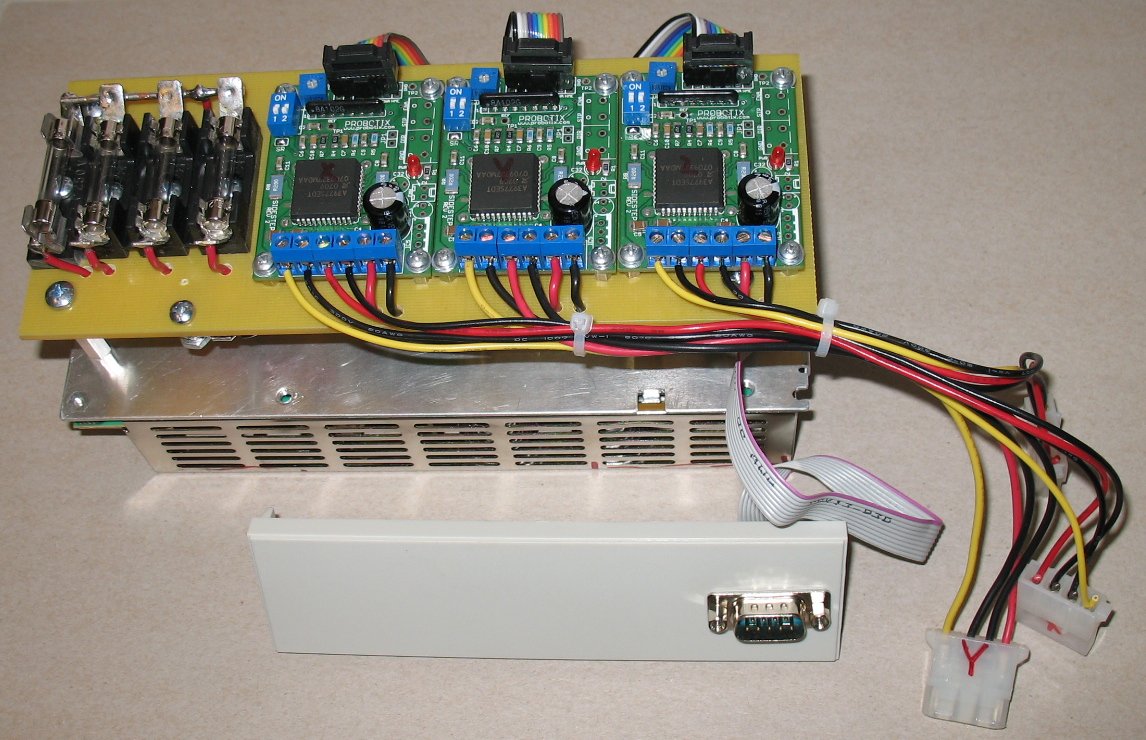

I hooked up a 9 pin serial connector to the x,y,z limits and emergency stop. I'll run a 9 pin serial cable from the front of the PC to the router table. I also added computer style power connectors to the x,y,z motor feed wires. |
| Click on the images to see a larger image | |
 |
 |

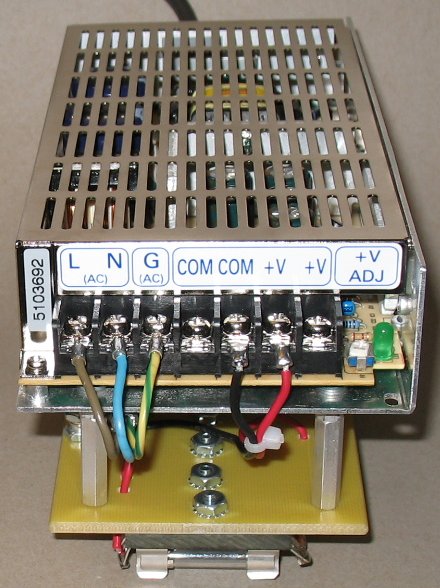

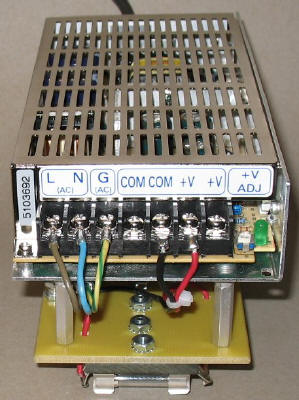

| Power supply hook ups | Power supply hook ups |
| - | |
| Click on the images to see a larger image | |
 |
 |

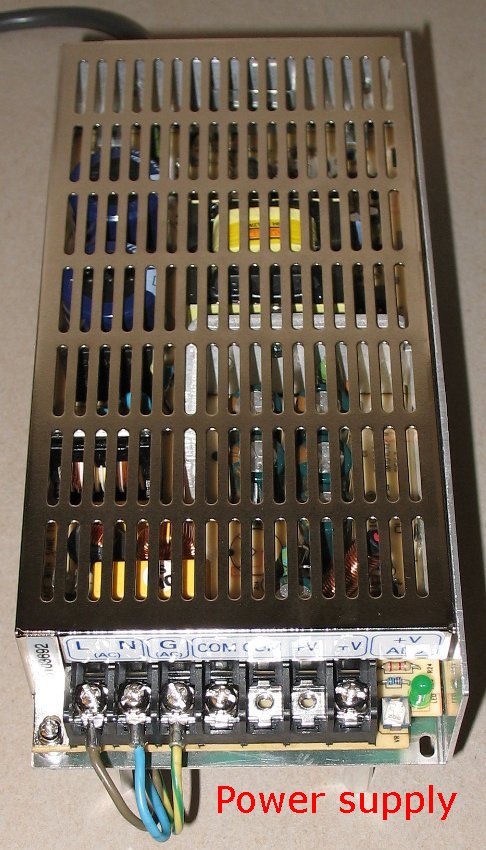

| Power supply hook ups and fuse block |

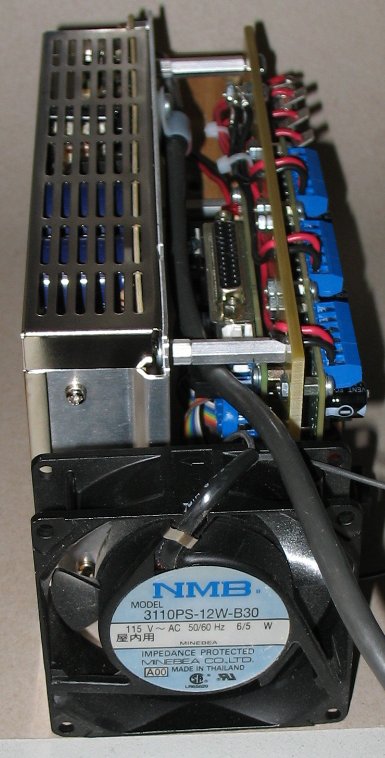

My plan is to put the power supply/board assembly into a case and have a fan at one end to keep things cool. |
| - | |
