Please Critique This Layout

[blown240]

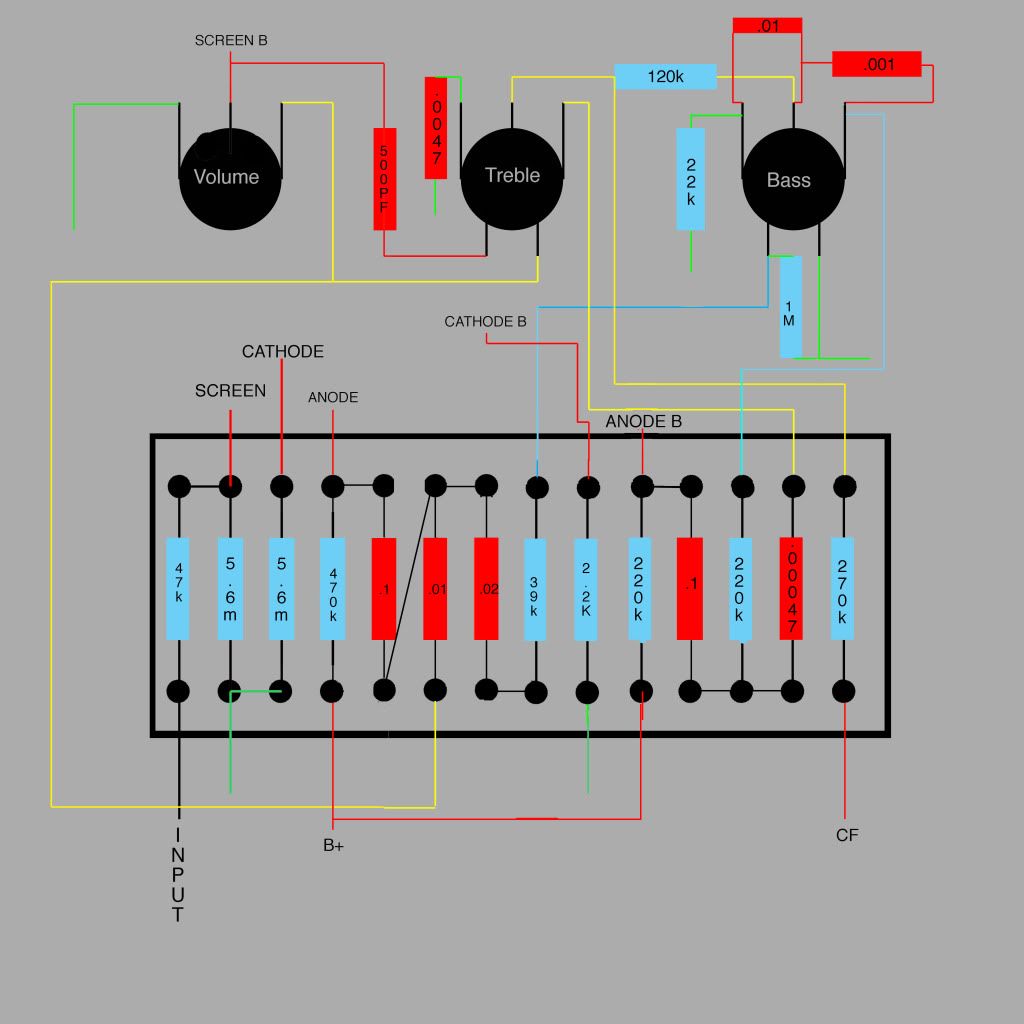

This is the first layout I have ever setup myself.  Please let me know if there are any glaring errors.

Thanks!!

Red = Capacitors
Blue = Resistors

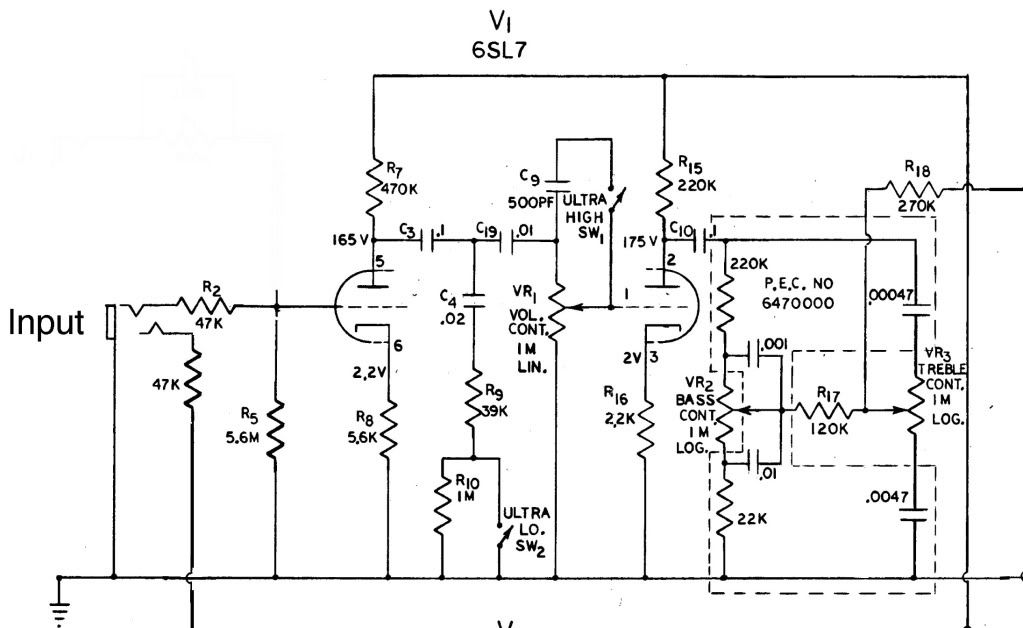

Its based on this section of schematic:

[PRR]

Screen or grid?

[Iannone]

I would think that you'd want a Log pot for VR1.

[terminalgs]

Since I've been following the other threads, and I know what you are doing with this,, I'd suggest putting all the plate R's, coupling caps, and cathode  R's (so thats R8,R7,C3,R16,R15,C10) on a separate board with the CF circuit,   and put all the tone stack stuff on its own board.  I think you'll be fiddling with the tone stack components a lot more than the basic gain stage and CF components...

I'd move R2 and R5 off the board and as close to the tube pin as possible. maybe a short tag strip next to the tube socket and let the grid stopper (R2) be soldered directly to the grid pin with the body of the resistor as close to the tube socket's "pin tag" as possible.   you could even put R5 on the other side of R2,  back at the switched input jack if you want (like a blackface fender).  run shielded wire between R2 and the input jack with the shield chassis grounded at one end or the other..  Ampegs ran shielded wire from socket to eyelet board wherever instrument signal was carried  (findsome gut shots of some bluechecks online).

[blown240]

Thanks for the replies.

Not a bad idea putting the tone stack on its own board.  Maybe I should do 1 board with the tone stacks for both channels on it.  Then 1 board for plate R's, coupling caps, and cathode  R's.  And maybe a 3rd for the CF.

I will probably also have a small board for the rectifier.

I plan on making my own chassis for this project, so space wont really be an issue, although I don't want it to be HUGE.

[jojokeo]
