Welcome to the EL34 World Tube Amp library of information.

Bookmark this page

This page is full of links that lead to every information page on my web site.
There is a ton of information below, take your time and read it all.
Many questions can be answered by studying the information below.

Important info: Please refresh the PDF diagrams below
The PDF diagrams on this page are being updated all the time.
You will not see the latest version until you hit refresh on your browser as you are viewing a PDF diagram
Your browser will be displaying the older PDF file version unless you refresh it

tube amp schematic tube amp layout diagram
Check out our huge library of Guitar Tube amp schematics,
effects schematics and many other types of schematics

The Tube Amp Schematics Library

Click on a Bookmark Link below to navigate around this page

Transformer wiring diagrams  *



Hoffman board information and parts listings
Hoffman 5F1 Tweed Champ
Hoffman 5F2A Princeton
Hoffman 5E3 Tweed Deluxe
Hoffman 5F6A Bassman
Hoffman Plexi 50
Hoffman AB763 One Channel
Hoffman AB763 Two Channel
Hoffman Princeton Reverb
Hoffman AC30

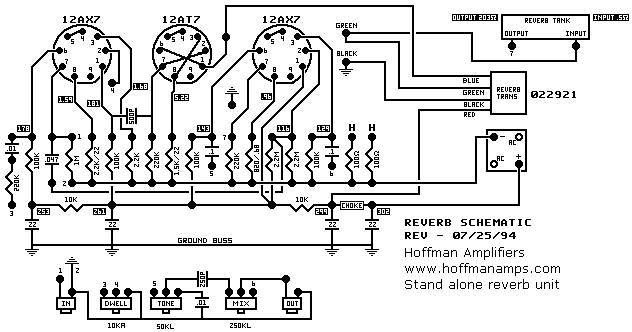

Hoffman 6G15 Reverb Unit

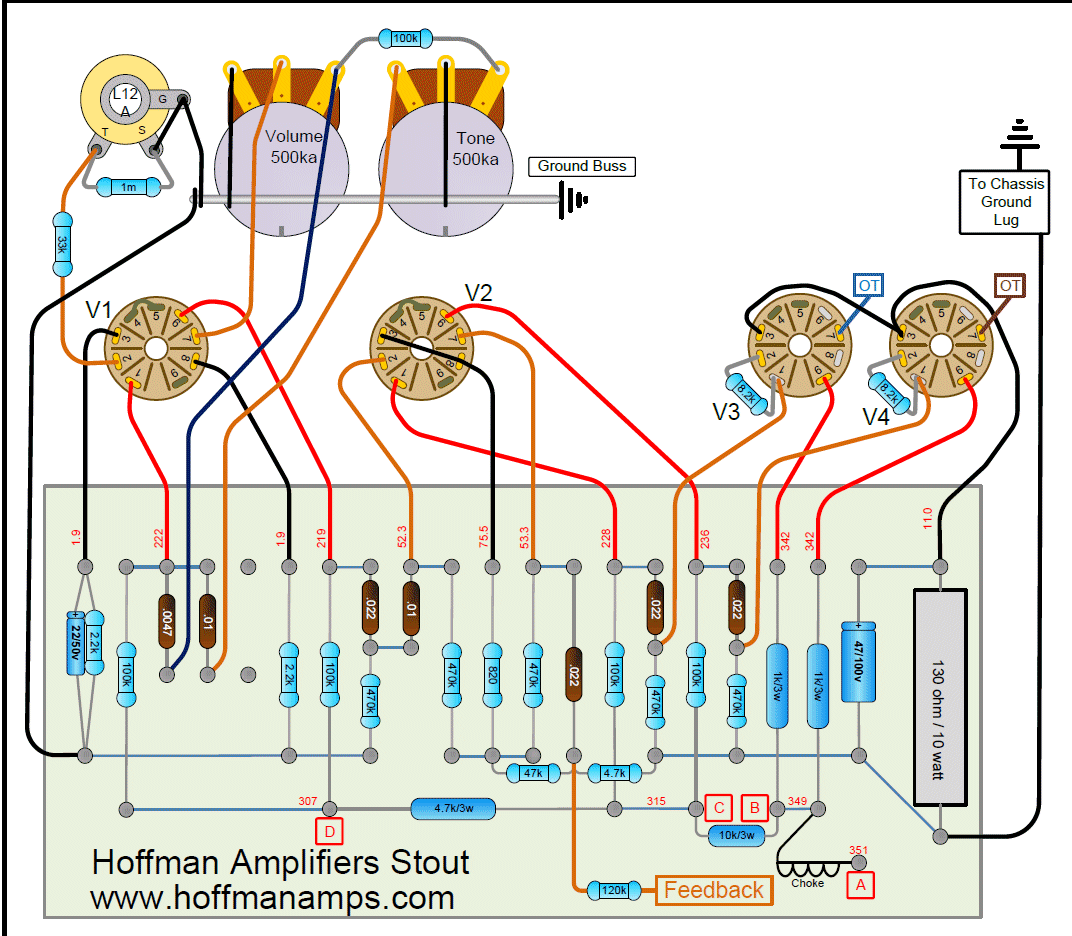

Hoffman Stout
Hoffman Stout Reverb

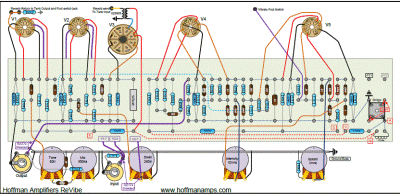

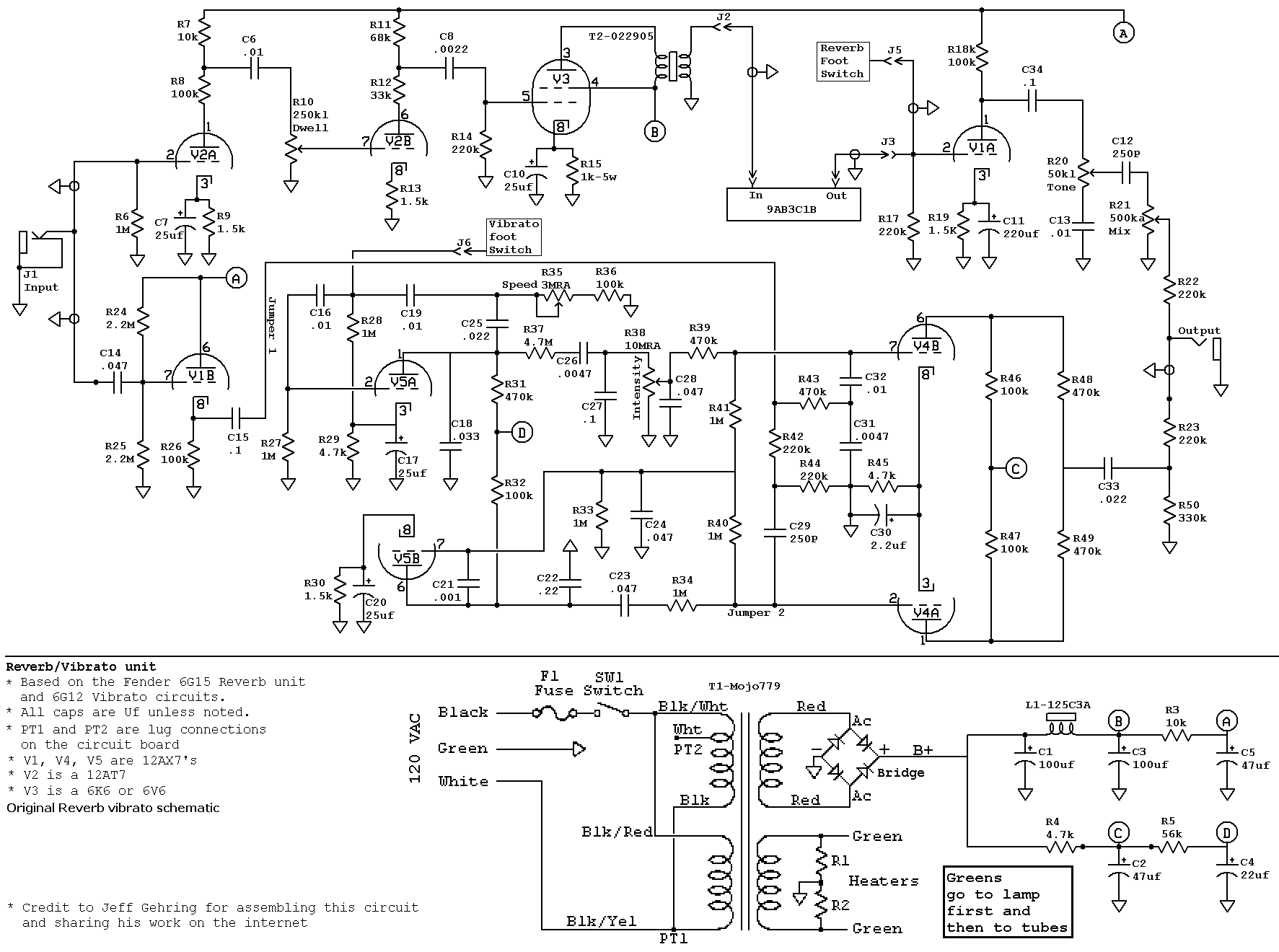

Hoffman ReVibe



Mods and Projects
My Hoffman Princeton Reverb Build
5F1 Champ Board Build
Hoffman AB763 One Channel Build

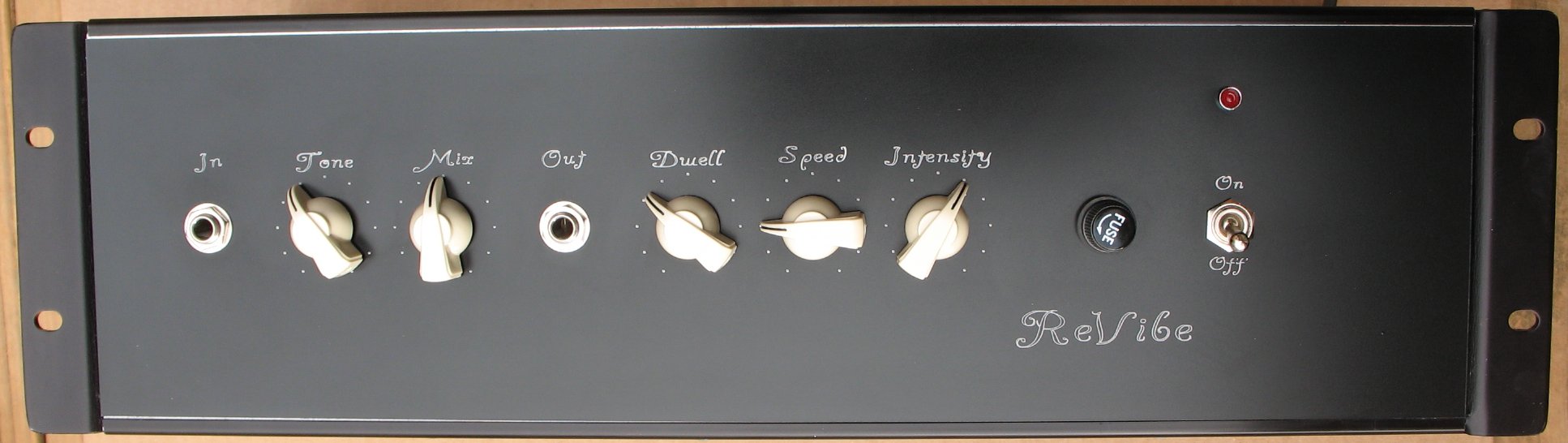

Rack Mount ReVibe Project
Hoffman 18 Watt Stout Project

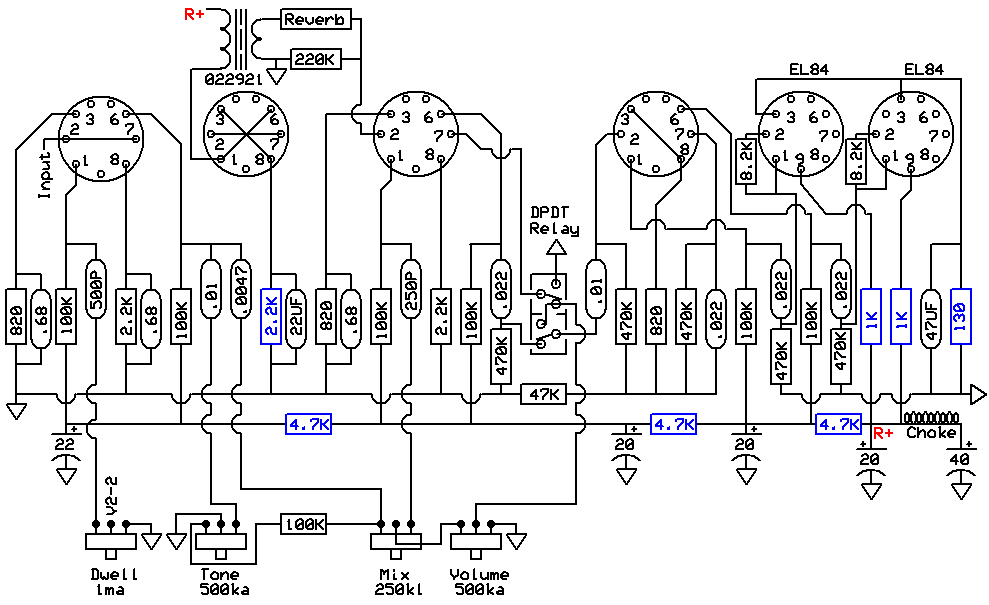

Hoffman 18 Watt Stout Reverb Project

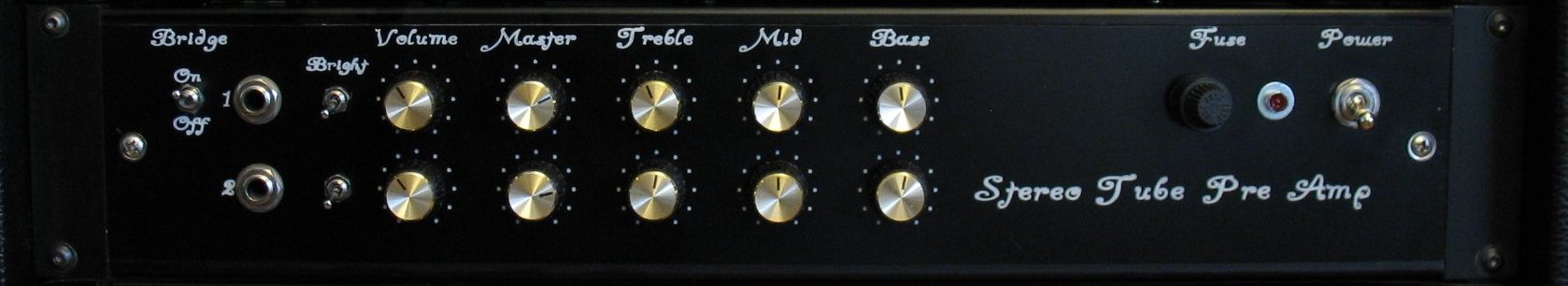

Tube Pre Amp in a Pedal Box project
Tube Stereo Guitar Pre Amp Project
Tube Stereo Guitar Power Amp project

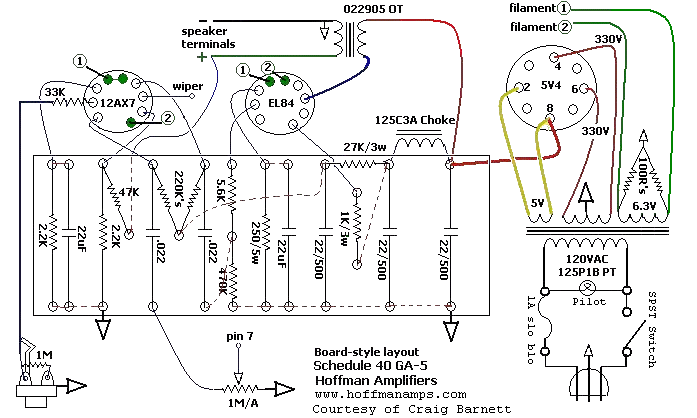

Schedule 40 Project
Hot Switch Mod and Relay switching Info
Add Reverb to the Western Electric Circuit

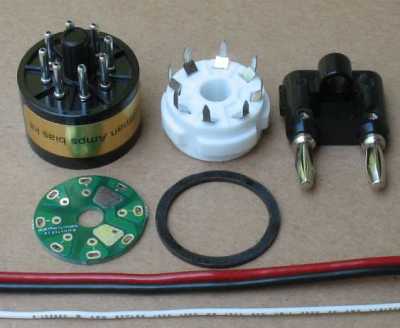

How To Assemble a Hoffman Bias Checker
Wah Wah Bypass Mod



Scratch Building amps

Helpful info items

Technical and amp service information

Servicing Fender amplifiers

Hoffman Amplifiers stuff

Sound Clips page - Tube amp sound clips and tunes of all types

Check out all my other hobbies and projects on this page
Behringer FCB1010 mods and info
Controlling Guitar Rig with the FCB1010

How to print the diagrams on my web site on your printer

-

Links to technical and amp service information

Lots and lots of helpful people can be found on my Amp forum.
This is where you go to ask tube amp questions.
My Tube Amplifier and Guitar help forum

Amplifier service technicians listing

Tube amp Schematics and layout diagrams
Everything from Acoustic to Wurlitzer

PDF tube amp books that you can download
Right click on the links below and then choose "Save Target as"
Save the PDF files to your computer where you can find them and then read them via Adobe acrobat
Note that these are very large files.
Radiotron designers handbook 3rd edition - 16 mb
Radiotron designers handbook 4th edition - 25 mb

Top of page

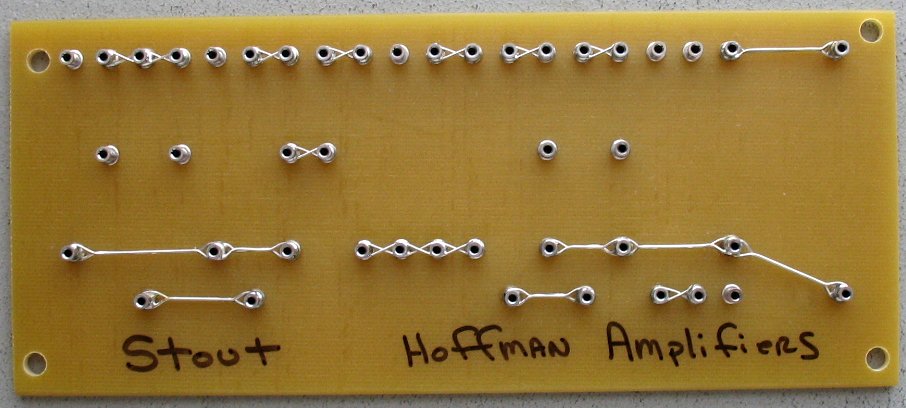

Hoffman Board information

What is a Hoffman board?
Hoffman boards are classic amp circuits that have been re-designed using my own turret lug layouts.
I didn't invent the circuits, I just came up with a slick way to organize the circuits on super neat turret lug boards.

Hoffman Turret boards are 1/8th inch thick glass epoxy material.
The boards are drilled on my CNC machine with 3/32" holes for the Tall turret lugs that I sell on this page.
Use the Hoffman layout diagrams, parts listings and assembly instructions found on this page to assemble these boards.
You can find Public parts list for the Hoffman Turret Boards on this page



Want to make a Hoffman board from scratch?
Hoffman Board manufacturing instructions - Page 0
Hoffman Board manufacturing instructions - Page 1
Hoffman Board manufacturing instructions - Page 2
Hoffman Board manufacturing instructions - Page 3
Hoffman Board manufacturing instructions - Page 4
Hoffman Board manufacturing instructions - Page 5
Hoffman Board manufacturing instructions - Page 6
Old Hoffman Board kit info page



Updated 07/28/2014 - Hoffman board installation Instructions
Choosing a chassis for a Hoffman board
Scratch building an amp
Sound clips of some of the amps below



Hoffman hookups

Note: The Hoffman layout diagrams below are my own designs.

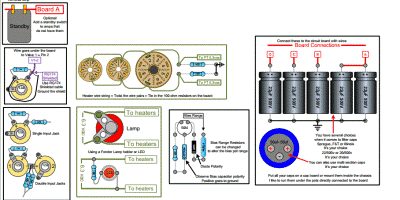

Look at these pages for layout diagram hookup info.
New - PDF version of hookup notes and details

Old version - Common Hookup info for all Board layout diagrams

Note: If there is an item on one of my layout diagrams this is confusing you,
it's probably because you did not look at the common hookup pages above. :)

This board on the forum has questions and answers about the Hoffman Turret boards




I now offer the Hoffman pre-drilled boards with turret lugs installed
Go to my parts catalog to see these boards and for more info
Board building parts page

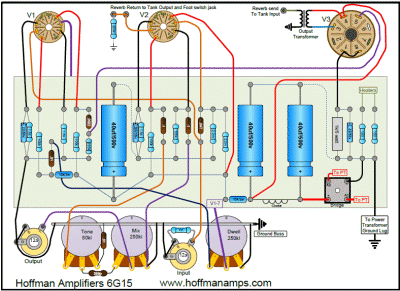

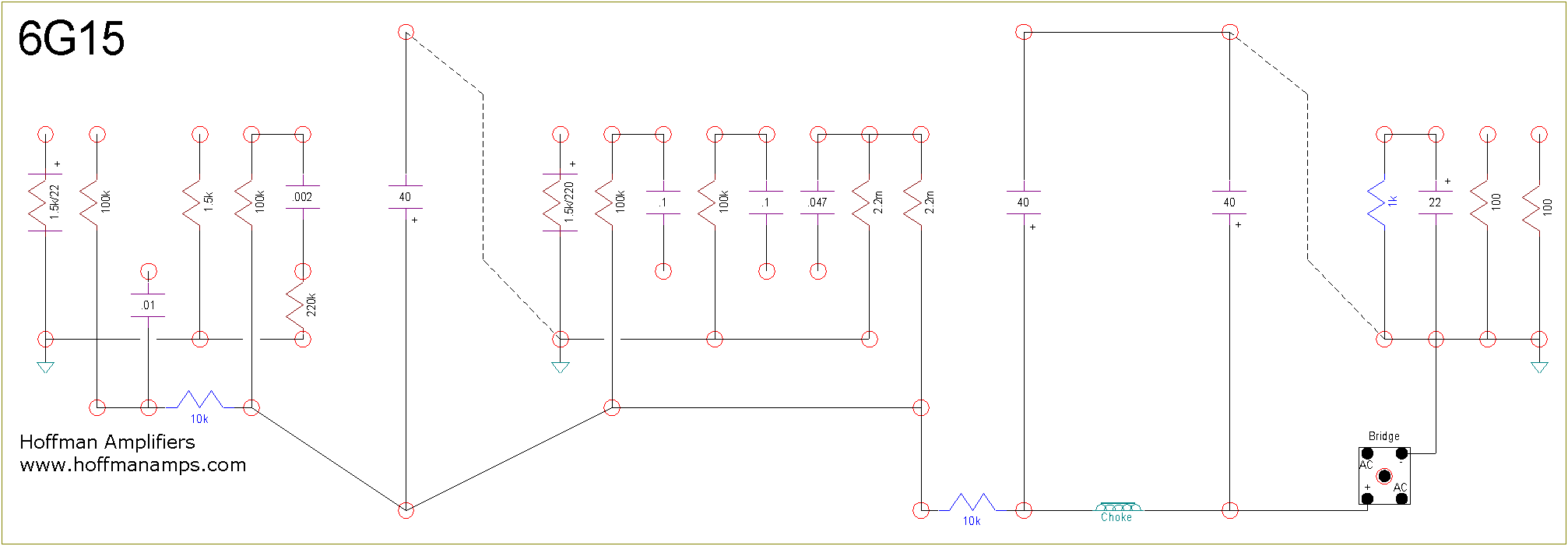

Hoffman 6G15 Board


The really really old layout diagrams below are labeled - Layout diagram #1
The really old new layouts are labeled - Layout diagram #2
The brand new diagrams below are PDF diagrams and they are really nice

Check out my new Parts List page.
Some of the Hoffman Boards below have Parts list.
You can add all the parts to your shopping cart with one button click or just use it as a BOM
Hoffman Amplifiers Public Parts List Page



Hoffman 5F1 Tweed Champ

Hoffman Champ

New - Hoffman 5F1 Tweed Champ - PDF layout diagram and Schematic
New - Hoffman 5F1 Tweed champ - PDF BOM
New - This page shows a 5F1 board being built
Hoffman Turret Boards are located on this page
Hoffman Amplifiers Public Parts List Page
Go here to ask questions about this board



Hoffman 5F2A Princeton

Hoffman 5F2A Princeton

New - Hoffman 5F2A Princeton - PDF layout diagram and Schematic
New - Hoffman 5F2A Princeton - PDF BOM
Hoffman Turret Boards are located on this page
Hoffman Amplifiers Public Parts List Page
Go here to ask questions about this board

Note that the 5F1 Champ and 5F2A Princeton boards are the same board
There are a few parts differences, but the board layout is the same
The 5F2A Princeton has a tone pot and the 5F1 Champ does not



Hoffman 5E3 Tweed Deluxe

Hoffman 5E3

New - Hoffman 5E3 Tweed Deluxe - PDF layout diagram and Schematic
New - Hoffman 5E3 Tweed Deluxe - PDF BOM
Hoffman Turret Boards are located on this page
Hoffman Amplifiers Public Parts List Page
Go here to ask questions about this board

Older Diagrams
Hoffman 5E3 Tweed Deluxe - layout diagram #1
Hoffman 5E3 Tweed Deluxe - layout diagram #2
Hoffman 5E3 Tweed Deluxe parts listing



Hoffman 5F6A Bassman

Hoffman 5F6A

New - Hoffman 5F6A Tweed Bassman - PDF layout diagram and Schematic
New - Hoffman 5F6A Tweed Bassman - PDF BOM
Hoffman Turret Boards are located on this page
Hoffman Amplifiers Public Parts List Page
Go here to ask questions about this board

Older Diagrams
Hoffman 5F6A Tweed Bassman - layout diagram #1
Hoffman 5F6A Tweed Bassman - layout diagram #2
Hoffman 5F6A Tweed Bassman parts listing

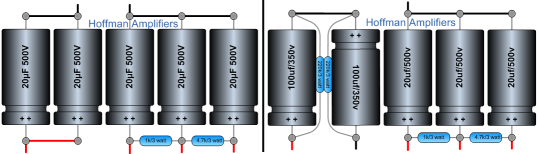

Bassman reissue filter cap hookup document



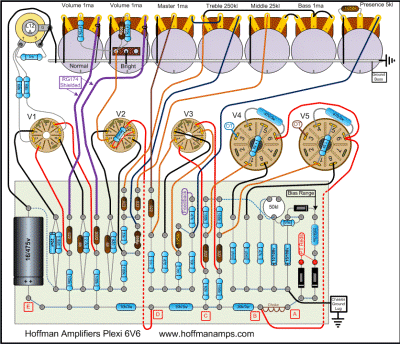

Hoffman Plexi 50

Hoffman Plexi50

New - Hoffman Plexi50 - PDF layout diagram and Schematic
New - Hoffman Plexi50 - PDF BOM
Hoffman Turret Boards are located on this page
Hoffman Amplifiers Public Parts List Page
Go here to ask questions about this board

Older Diagrams
Hoffman Plexi50 - layout diagram #1
Hoffman Plexi50 - layout diagram # 2
Hoffman Plexi 50 parts listing
Marshall 50 watt power supply diagram

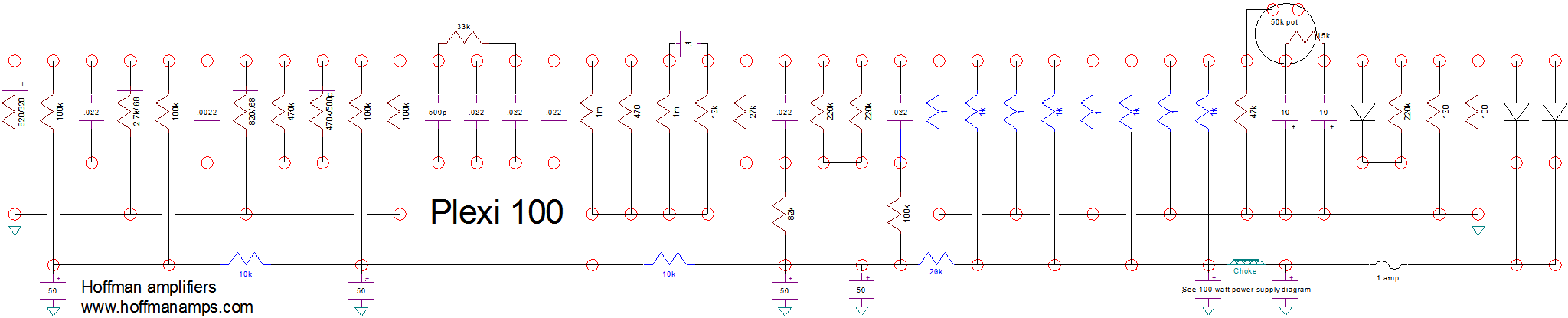

Hoffman Plexi100 - layout diagram #1
Hoffman Plexi100 - layout diagram # 2

The 100 watt has a unique power supply
Marshall 100 watt power supply diagram



Hoffman AB763 One Channel

Hoffman AB763

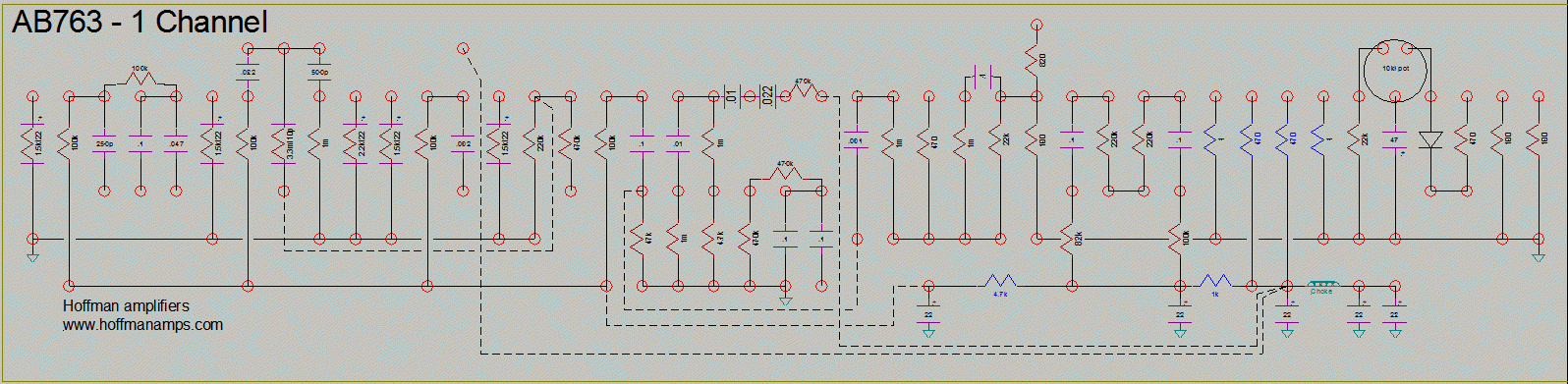

New - Hoffman AB763 - One Channel - PDF layout diagram and Schematic
New - Hoffman AB763 - One Channel - PDF BOM
Hoffman Turret Boards are located on this page
Hoffman Amplifiers Public Parts List Page
Hoffman AB763 circuit information page
Go here to ask questions about this board

Older Diagrams
Hoffman AB763 - One Channel Layout diagram #1
Hoffman AB763 - One Channel Layout diagram #2
Hoffman AB763 - One and Two Channel Parts listing
You can see my AB763 project on this page



You can make any of the Reverb amps in the list below using the AB763 circuit.
Basically, the only difference between the different models are the transformers, speakers and the power tubes
Deluxe Reverb, Vibrolux Reverb, Bandmaster Reverb, Pro reverb, Super Reverb, Twin Reverb
This chart shows the transformer numbers for many fenders
You can also convert older numbers to more recent numbers
Fender Transformer Conversion Charts



Hoffman AB763 Two Channel

Hoffman AB763

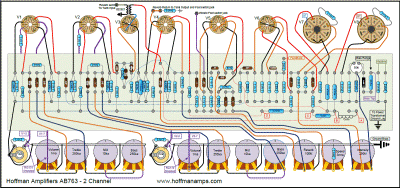

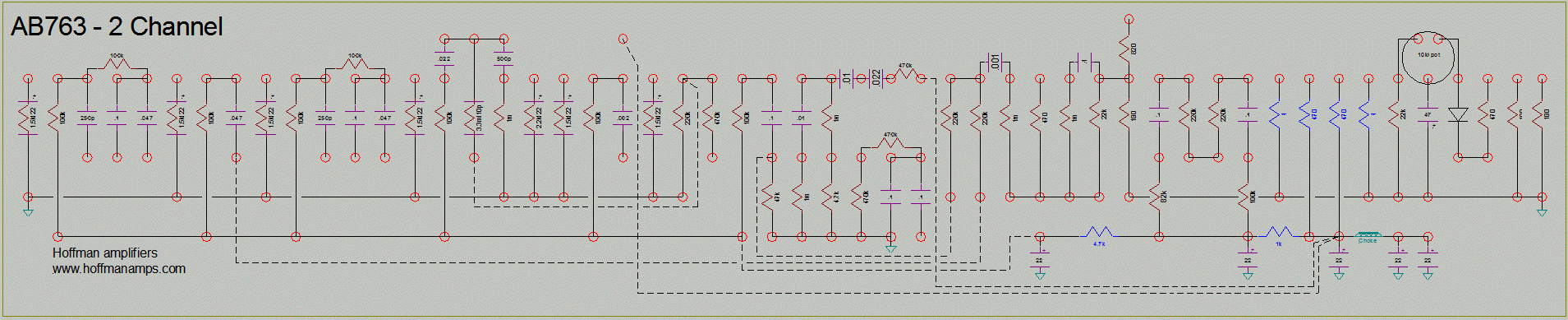

New - Hoffman AB763 - Two Channel - PDF layout diagram and Schematic
New - Hoffman AB763 - Two Channel - PDF BOM
Hoffman Turret Boards are located on this page
Hoffman Amplifiers Public Parts List Page
Hoffman AB763 circuit information page
Go here to ask questions about this board

Older Diagrams

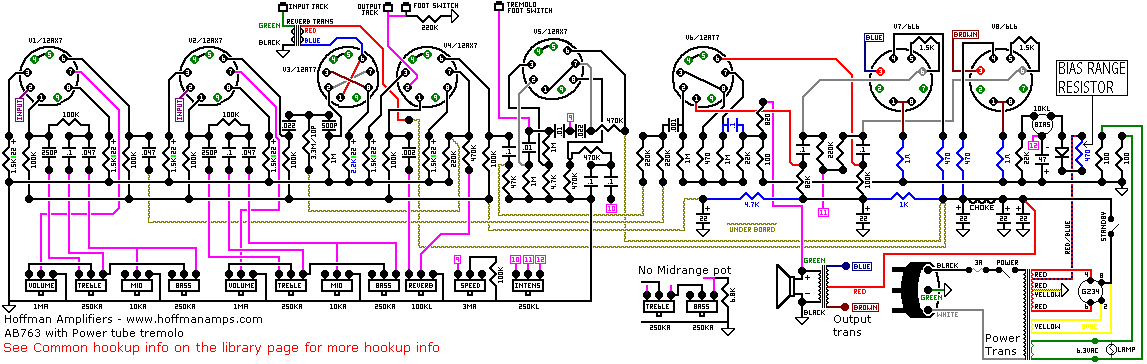

Hoffman AB763 - Two Channel Layout diagram #1
Hoffman AB763 - Two Channel Layout diagram #2
Hoffman AB763 - One and Two Channel Parts listing

You can see my AB763 project on this page

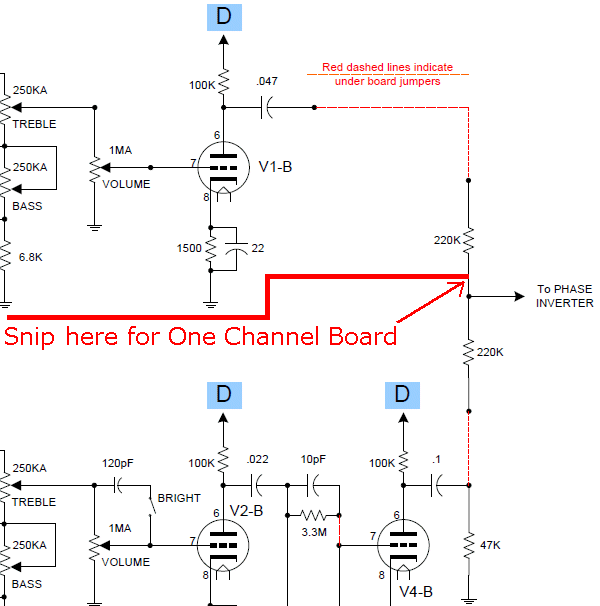

Image showing how to create one channel from two
New - Sluckey's AB763 Tremolo Mods



Hoffman Princeton Reverb

Hoffman Princeton Reverb

New - Hoffman Princeton Reverb - PDF layout diagram and Schematic
New - Hoffman Princeton Reverb - PDF BOM
Hoffman Turret Boards are located on this page
Hoffman Amplifiers Public Parts List Page
Go here to ask questions about this board
My Hoffman Princeton Reverb Build

Older Diagrams
Hoffman Princeton Reverb - layout diagram
Hoffman Princeton Reverb parts listing



Hoffman AC30

Hoffman AC30

New - Hoffman AC30 - PDF layout diagram and Schematic
New - Hoffman AC30 - PDF BOM
Hoffman Turret Boards are located on this page
Hoffman Amplifiers Public Parts List Page
Go here to ask questions about this board

Older Diagrams
Hoffman AC30 - layout diagram #1
Hoffman AC30 - layout diagram #2
Hoffman AC30 parts listing



Hoffman 6G15 Reverb Unit

Hoffman 6G15

New - Hoffman 6G15 Reverb Unit - PDF layout diagram and Schematic
New - Hoffman 6G15 Reverb Unit - PDF BOM
Hoffman Turret Boards are located on this page
Hoffman Amplifiers Public Parts List Page
Go here to ask questions about this board

Older Diagrams
Hoffman 6G15 stand alone reverb - layout diagram #1
Hoffman 6G15 stand alone reverb - layout diagram #2
Hoffman 6G15 stand alone Reverb unit parts listing



Hoffman Stout

Hoffman Stout

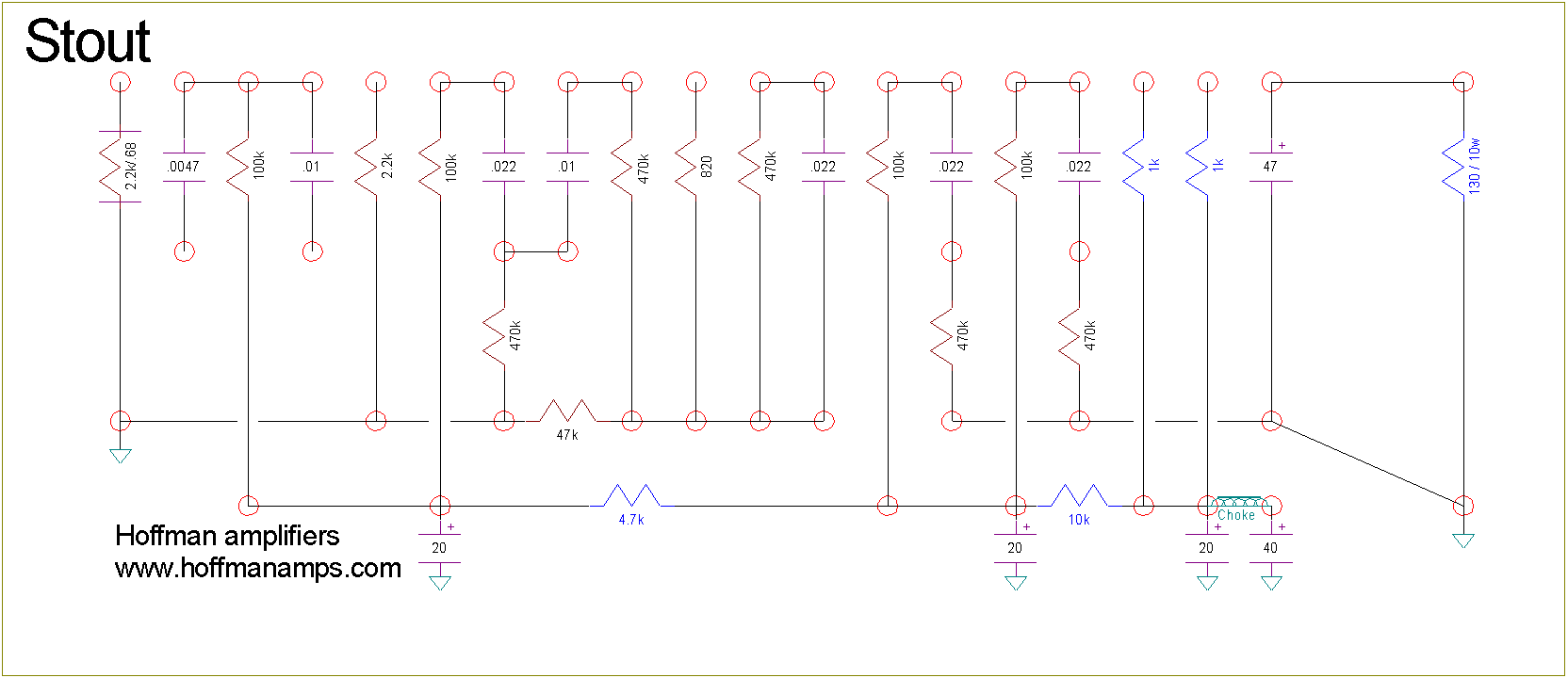

New - Hoffman Stout - PDF layout diagram
New - Hoffman Stout - PDF BOM
Hoffman Turret Boards are located on this page
Hoffman Amplifiers Public Parts List Page
Go here to ask questions about this board

Older Diagrams
18 Watt Stout - layout diagram #1
18 Watt Stout - layout diagram #2
18 Watt Stout - schematic
18 Watt Stout - parts listing

There is more info on this board in the Mods and Projects section below




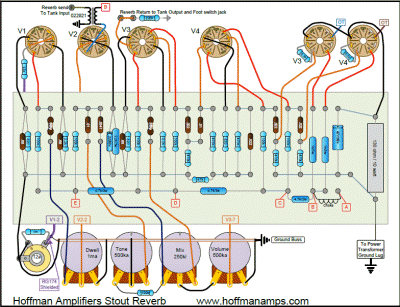

Hoffman Stout Reverb

Hoffman Stout Reverb

New - Hoffman Stout Reverb - PDF layout diagram and Schematic
New - Hoffman Stout Reverb - PDF BOM
Hoffman Turret Boards are located on this page
Hoffman Amplifiers Public Parts List Page
Go here to ask questions about this board

Older Diagrams

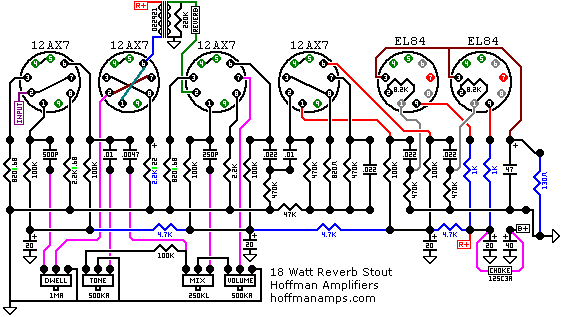

18 Watt Stout Reverb - layout Diagram #1
18 Watt Stout Reverb - layout Diagram #2

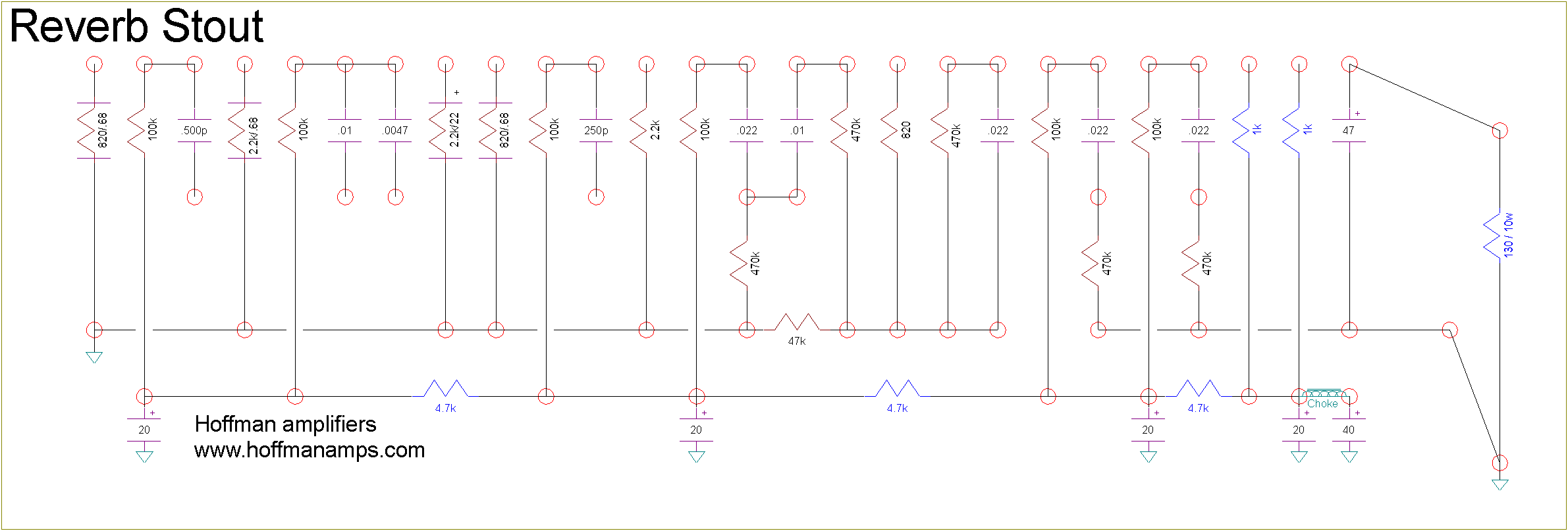

18 Watt Stout Reverb - Schematic
18 Watt Stout Reverb - Parts listing

There is more info on this board in the Mods and Projects section below



Hoffman ReVibe
ReVibe - Reverb/Vibrato stand alone unit with the Tore-T ReVibe mod

Hoffman ReVibe

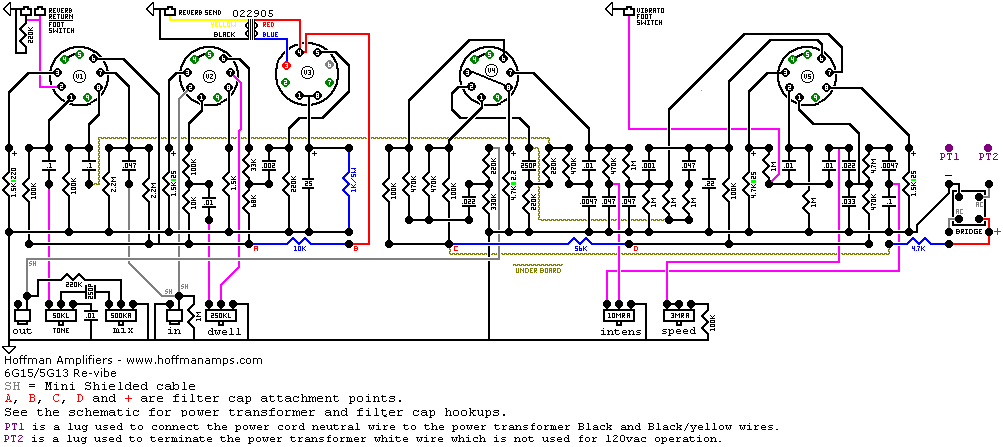

New - Hoffman ReVibe - PDF layout diagram and Schematic
New - Hoffman ReVibe - PDF BOM
Hoffman Turret Boards are located on this page
Hoffman Amplifiers Public Parts List Page
Go here to ask questions about this board

ReVibe Sound clips
Sound Clip #1
Sound Clip #2

Older Diagrams

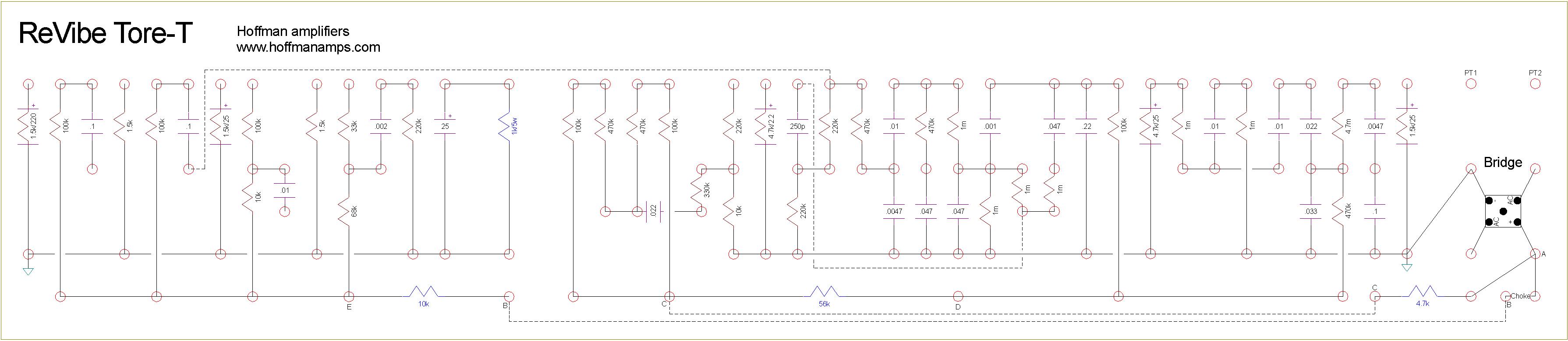

ReVibe with Tore T mod - Layout Diagram #1
ReVibe with Tore T mod - Layout Diagram #2
ReVibe with Tore T mod - Schematic

Origins of the ReVibe

ReVibe - photo page
ReVibe -  parts listing

I built a ReVibe into a 3 high rack chassis
The Rack ReVibe project page
My Rack ReVibe Project on the forum


The original Re-Vibe had quite a bit of background hum.
I am not making a board for the original ReVibe
This section is here just for info purposes
Original Reverb/Vibrato Schematic
Original Hoffman style Reverb/Vibrato layout diagram - don't use this

Top of page

Mods and Projects

These mods and projects are not supported with any sort of tech support by me personally.
Some are projects that I have built for me personally or I built them to document a build process.
In some cases you need to have major fabrication skills to build these projects.
Please go to the Hoffman amp forum for technical questions.

Note: I don't recommend using relays to do switching unless you are an experienced builder.
Relays and switches add extra wire and can add hum and other problems unless your layout is perfect.
I prefer to hot wire the gain stages with switches to keep wire lengths as short as possible.

Sound Clips of some of the projects below

I now offer the Hoffman Turret boards as pre-drilled boards with or without the lugs installed
Go to my parts catalog - Board building parts page

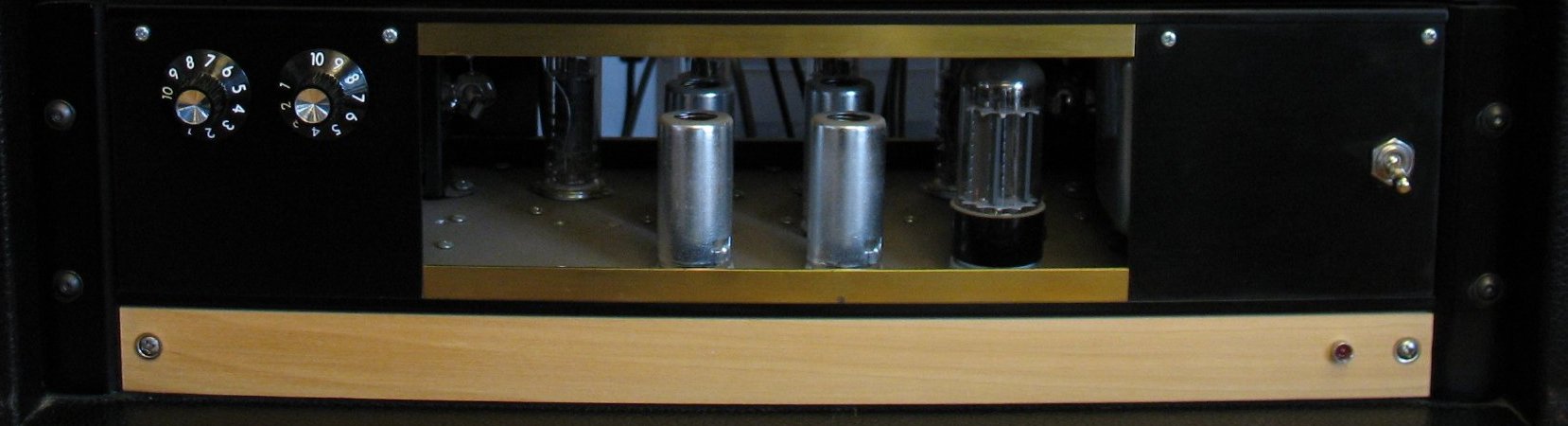

Rack mount ReVibe Project

I liked my first ReVibe so much that I decided to build one in a 3 high Rack chassis.
I like Rack mounted gear because it takes up way less space, the knobs all face out,
you don't have a bunch of gear sitting on the floor,
and it's easy to wire it all up using short George-L cables.

See the Hoffman Board Information section at the top of the forum for more ReVibe info.

The Rack ReVibe project page
My Rack ReVibe Project on the forum

Hoffman Revibe


18 Watt Stout Project

What is an 18 Watt Stout?
If you take a stock Marshall 18 Watt circuit and add in another pre amp gain stage, you get a terrible monster amp that can go from clean to mean.
I added a second gain stage to the stock 18 watt circuit and call my version the 18 watt Stout.
I also came up with a way to wedge reverb into to the Stout, which is called the 18 watt Reverb Stout.

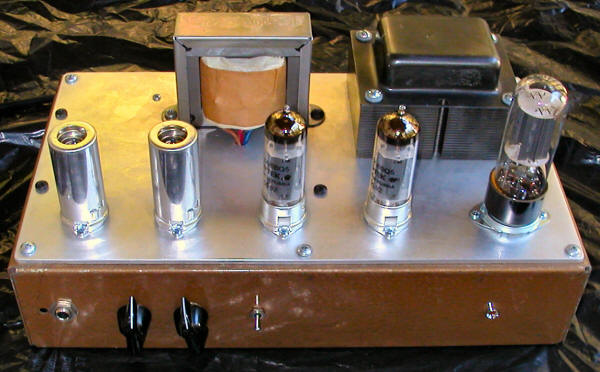

The 18 watt Stout project Pictures - Page 1
The 18 watt Stout project Pictures - Page 2
The 18 watt Stout project Pictures - Page 3
The 18 watt Stout project Pictures - Page 4

With switch to turn off gain stage
18 Watt Stout - layout diagram with voltages
18 Watt Stout - schematic

No switch - gain stage on full time
18 Watt Stout - layout diagram #1
18 Watt Stout - layout diagram #2
18 watt Stout bare board picture
18 Watt Stout - schematic

18 Watt Stout - parts listing - with or without switch or relay



18 Watt Stout Reverb Project

No switch - Gain stage on full time
18 watt Reverb Stout project#1 - Pictures Page 1
18 watt Reverb Stout project#1 - Pictures Page 2

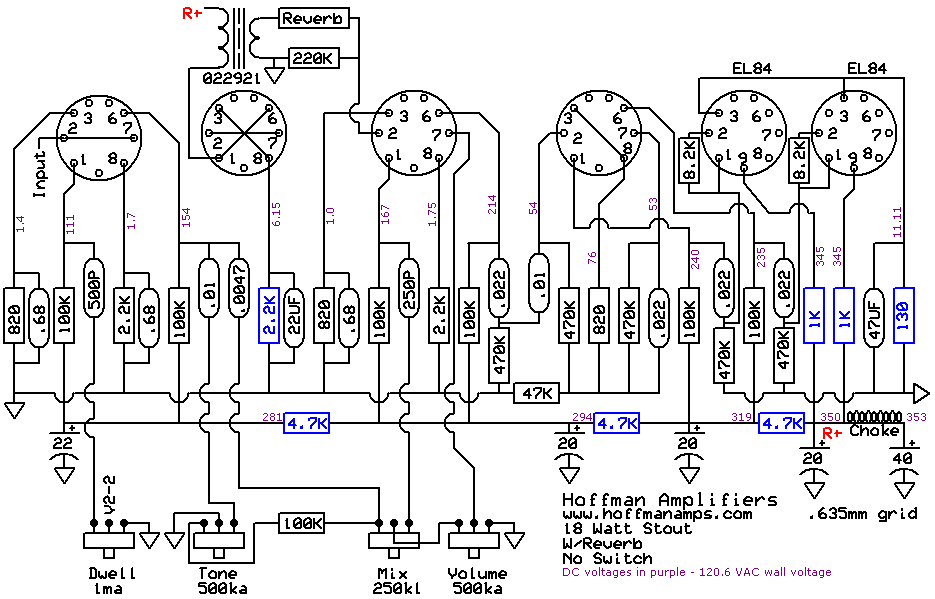

18 Watt Reverb Stout - layout Diagram #1
18 Watt Reverb Stout - layout Diagram #2
18 Watt Reverb Stout - voltages
18 Watt Reverb Stout - Schematic
18 Watt Reverb Stout - Parts listing

With relay to switch off Gain stage
The 18 watt Reverb Stout project#2 - Pictures - Page 1
The 18 watt Reverb Stout project#2 - Pictures - Page 2
18 Watt Stout with Reverb - layout Diagram
18 Watt Stout with Reverb - Schematic
18 Watt Stout with Reverb - Parts listing

Top of page

More Mods and Projects

Tube pre amp in a pedal box

Notes: This is not a kit, it's a one of a kind personal project that I created from scratch.
It requires major fabrication skills.
It is a pre amp that I used for recording.
It is not a stomp box distortion pedal.
If you are thinking of building this, copy pedal #2 layout.
Pedal #2 was a much better layout design.

The tube pedal project - Page 1
The tube pedal project - Page 2
The tube pedal project - Page 3
The tube pedal project - page 4

Tube pedal project parts listing
Tube pedal project schematic


All tube Stereo guitar pre amp project

Notes: This is not a kit, it's a one of a kind personal project that I created from scratch.
It requires major fabrication skills.
I built this stereo pre amp to use with my Stereo effects unit.
I now use it mainly for recording and it sounds great!

Stereo pre amp project

Stereo pre amp project- layout diagram
Stereo pre amp project - schematic

Hoffman pre amp


All tube Stereo guitar power amp project

Notes: This is not a kit, it's a one of a kind personal project that I created from scratch.
It requires major fabrication skills.
I built this stereo power amp to go along with the stereo pre amp above and my stereo effects unit.

Stereo power amp project

Stereo power amp project - schematic

Hoffman power amp


Schedule 40 Project

A Gibson GA-5 circuit built into a Schedule 40 PVC electrical box

The Schedule 40 GA-5 amp
Schedule 40 schematic
Original Gibson GA-5 schematic

Craig Barnett created a board layout and parts listing for the Schedule 40
Schedule 40 Circuit board layout diagram by Craig Barnett
Schedule 40 Parts listing by Craig Barnett


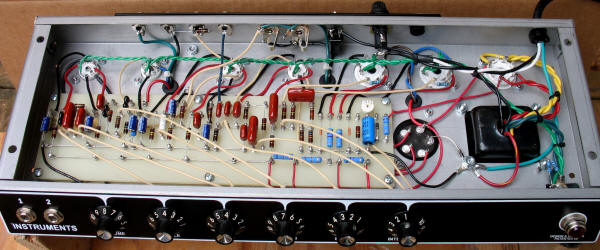

Hoffman AB763 one Channel build
I installed a AB763 board into a junked out Deluxe Reverb Chassis

You can see my AB763 project on this page

Hoffman AB763 board


5F1 Champ board build

This page shows a 5F1 Champ board being built

Hoffman 5F1 Champ Board



Hoffman Princeton Reverb Build
Build pictures, info and video links with sounds

My Princeton Reverb Build Page

You can ask questions about this board on my forum here

I have some YouTube videos of this amp in action here

Hoffman Princeton Reverb Board


Hot switch Mod and relay switching info

Add a gain stage to some of my Hoffman style boards and other amps.
Hot Switch Mod


Relay switching info
Add a relay to the Hot switch mod and relay switching info


Compare to a regular Hoffman plexi layout diagram to see the before and after.
Plexi 50 with Hot Switch Mod schematic


Add Reverb to the Western electric circuit.

Notes: The reverb mod works great.
I used this circuit on my 30 watt Hoffman combo amps.

Add Reverb to the western electric circuit.


How to assemble a Bias current checker

Hoffman Bias current checker

Most recent Bias Checker version using the new PC board

An Older version using my CNC PC board

A very old version that did not use a PC board


Wah Wah bypass switch mod

Add a true bypass foot switch to your wah pedal

Top of page


Helpful info items
Record your tube amp voltages here
Tube amp voltage recording page
 See voltage data that others have recorded
Tube amp voltage index page
The old valve data index page

LED current limiter resistor calculator
Relay Switching Information Page

How to clamp down a EL84 9 pin tube socket
Updated - Cool amp tools

Updated - Fender bias circuit conversions
Updated - Fender cathode/fixed power tube conversions

Updated - Filter cap hookup solutions
Updated - Bassman reissue filter cap hookup document
Updated - How a bias circuit works

How to's
Updated -
How to add a bias pot to a Princeton and other amps
Updated - How to use the turret lug tool
How to use the lead bender tools
How to solder wires and components to turret lugs
Add a true bypass foot switch to your wah pedal
How to wire Hi/Low input jacks - Cliff and Switchcraft types

Charts and Diagrams
Tube Pin Out charts
Heater wiring diagram
Power transformer rectifier circuit diagrams
Rotary switch hookup photo
Amp Grounding diagram
Amplifier current flow
Capacitor code chart
Series speaker wiring
Parallel speaker wiring
4 Speaker Series/Parallel wiring diagram
Capacitors in series and parallel
Resistor codes
4 band Resistor Calculator
5 band Resistor Calculator

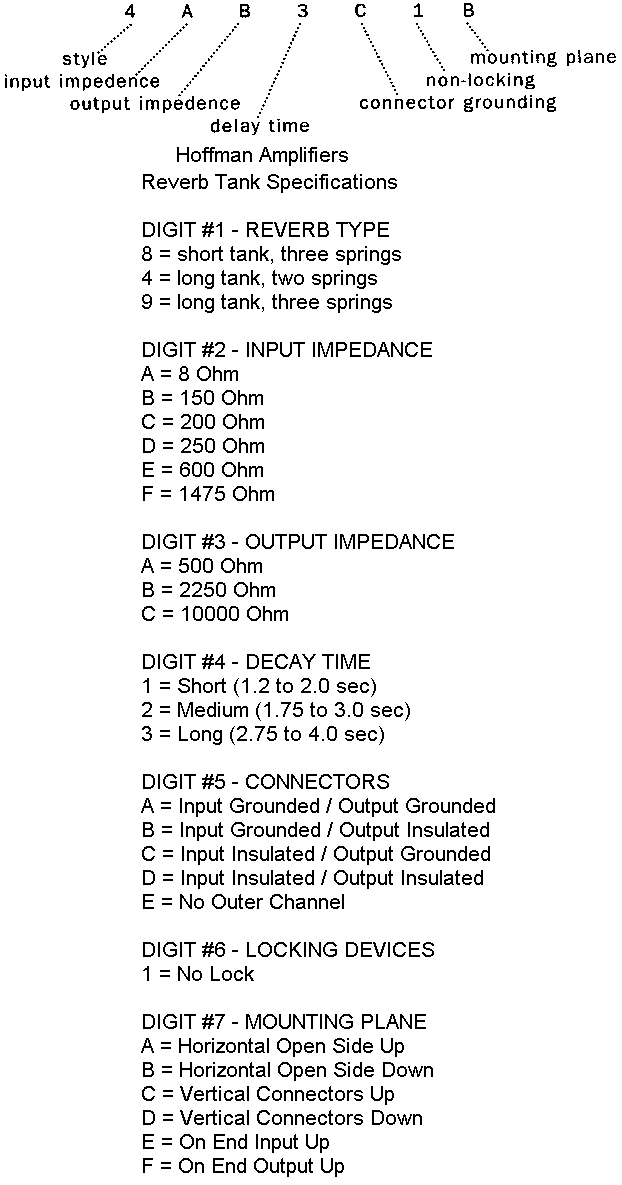

Reverb Tank Chart
Fender transformer number conversion chart
Marshall rotary style voltage selector switch, power switch and transformer wiring diagram
Marshall toggle style power switch diagram and 5 pin to 4 pin conversion info
Marshall 50 watt power supply diagram
Marshall 100 watt power supply diagram

George-L cable review

Top of page


Servicing Fender Amplifiers

Fender Filter Caps

This is my Fender amp servicing guide. I developed this service guide after many years of servicing Fender Vintage amplifiers.
Many Fenders used the same circuit inside with just a few different parts in the same spot on the board.
You don't need a special service guide for each amp to be able to service a Deluxe Reverb, Super Reverb, Pro reverb or any of the vintage fender amps.

 STOP:
Before doing any service work on an amplifier, you must make sure the amplifier is unplugged from the wall and the filter caps are drained.
Filter caps can hold a charge that can give you a severe shock.
The easiest way to drain your filter caps is to warm up the amp and then play the amp.
Do not shut the amp off with the power switch or the standby switch.
Just unplug the amp from the wall and keep strumming your guitar until the sound dies away.
Once the sound dies down, the voltage in the filter caps will be below a level that can hurt you.
There will still be a small voltage present in the caps but it is not enough to give you a nasty shock.
Typically there is less than 20 volts is in the filter cap after draining it this way.

Follow along with the instructions below by referring to the Fender Layout diagram on this page.

Updated 08/01/2014
Inside the amp - caps, resistors, etc.
Filter caps
Jacks, pots and tube sockets
Power cord and fuses
The heater system
Biasing the amp
Oddball amp noises

Top of page


Transformer wiring diagrams

The links below lead to wiring diagrams for the transformers I currently sell, and older discontinued models
Note: I do not sell OEM Fender and Marshall transformers.
Most are copies of older style transformers.

Toroidal power transformer wiring diagram

Fender Style Transformer wiring Diagrams

Marshall Style Transformer wiring Diagrams

Discontinued Hoffman Transformers - wiring diagrams and info

Top of page


Hoffman Amplifiers stuff
This section has info on the Hoffman amplifiers that I used to build many years ago.
Notes: I do not build these amps, this section is just here for informational purposes.
There's also info on my personal stuff, photos' etc.

Photo pages

The original Hoffman 30 watt head
The original Hoffman 50 watt head
Hoffman 50 watt head chassis assembly
Later style 50 and 100 watt heads
Oddball Hoffman 30 watt combo
Amps that I made for Randall



Hoffman amp Diagrams

Stand alone reverb unit
Stand alone reverb unit face plate layout



Very early 30 watt heads with 2-EL84's and DC heaters
30 watt heads with 2-6V6's and DC heaters
30 watt heads with 2-6V6's and AC heaters

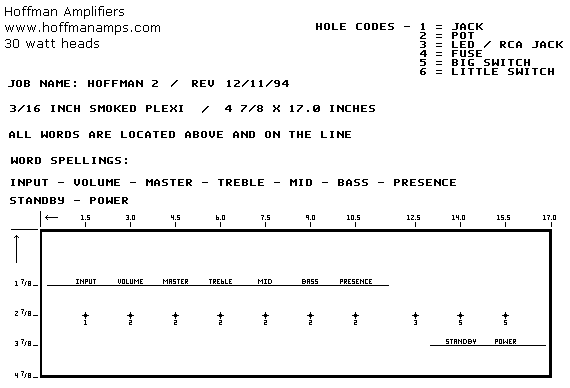

30 watt heads face plate layout



I called the early metal box heads the 2034 model

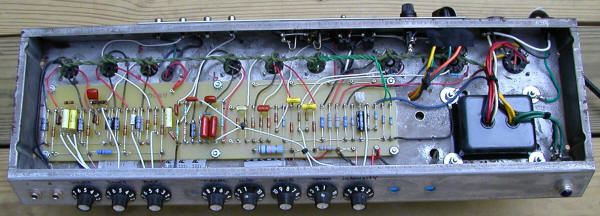

Early 50 watt heads with DC heaters
50 watt heads face plate layout
50 watt heads wiring diagram

I scanned the Metal template that I used to make the 2034 circuit boards

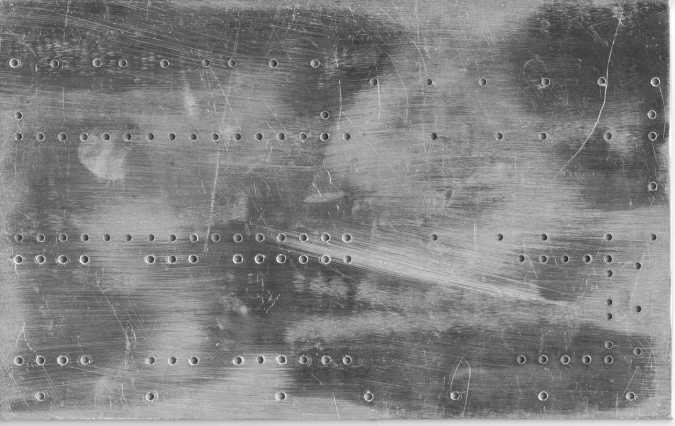

Here's an image of that metal template scan
50 Watt heads Metal Template scan image

Here's a .gif file you can use to drill the boards
50 Watt heads Template



These were the Marshall looking box heads I made after the early metal box heads
H50 and H100 later style pre amp layout diagram



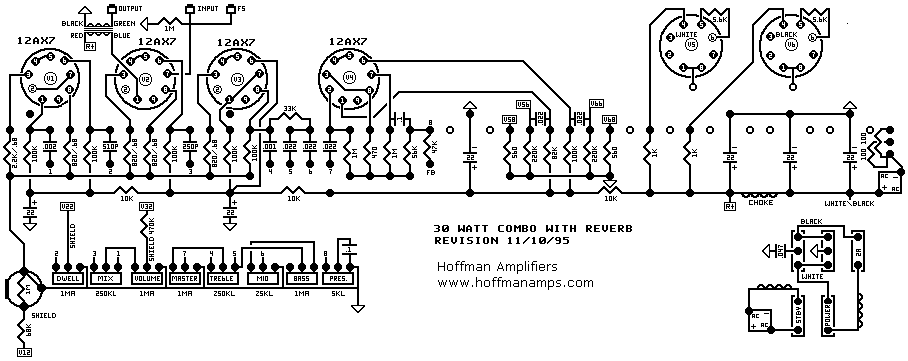

30 watt combo's
30 watt combo front face plate layout

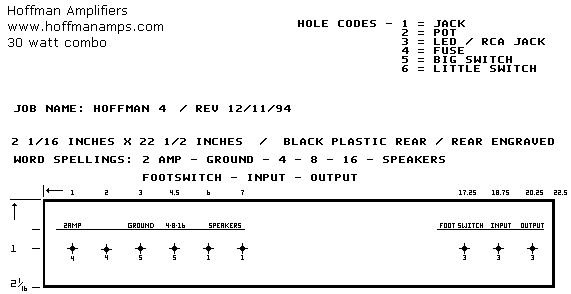

30 watt combo rear face plate layout



Diagrams of amps that I made for Randall

Randall 50/100 watt head pre amp layout

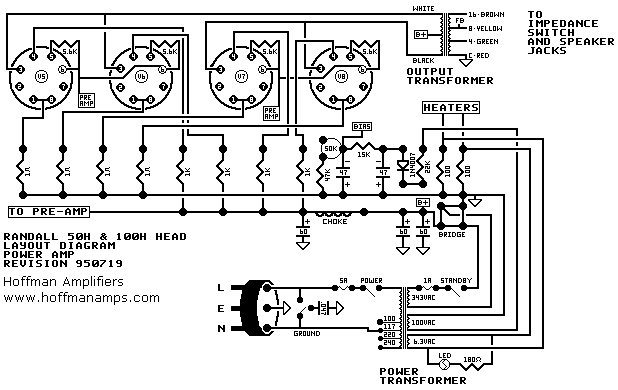

Randall 50/100 watt head power amp layout

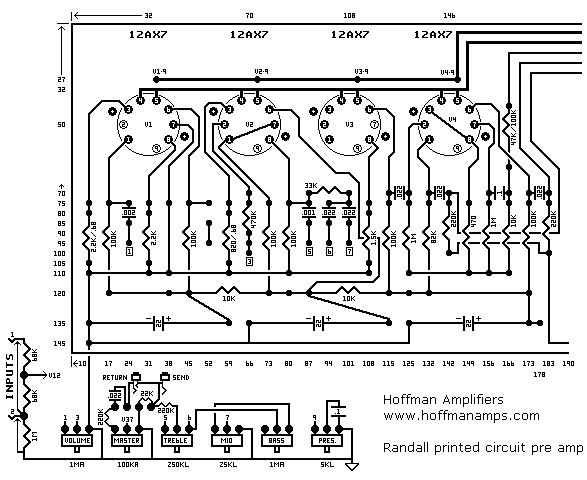

Randall 50/100 watt head PC board pre amp layout

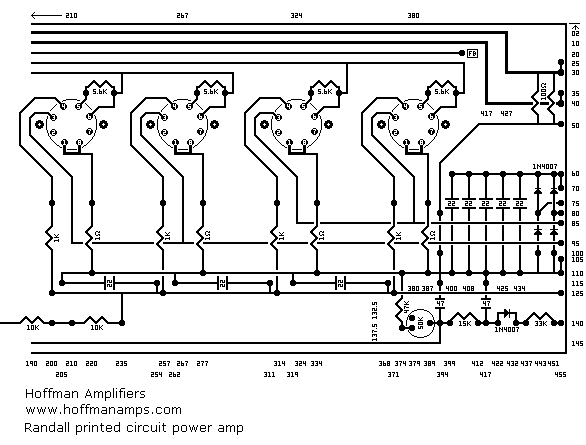

Randall 50/100 watt head PC board power amp layout


Personal stuff

My Main guitars and some amp photo's
Dickie Betts 1957 goldtop
Dickie Betts amp head stack
Dickie Betts photo's

Gerald Weber, Terry Oubre, Doug Hoffman, Bob Fieberts
Old Tube amp shop photo

Top of page

Windows printing tip
Any of the drawings or layout diagrams on my web site can be downloaded into your computer and printed on your printer.

Method 1: Put your mouse cursor on top of an image and then right click your mouse. Choose the "save picture as" option. Save the drawing on your Desktop or in a folder where you can find it. Open the drawing with your favorite drawing program. I use Paint Shop Pro to open and edit the drawings.

Method 2: Right click you mouse on top of an image, choose copy, then paste the image into your drawing program.

How to print the images larger:  In your drawing program, you can specify how you want your printer to print the drawing. Choose Landscape format and then Fit to page so the drawing fills out the entire width and length of the paper. I print the long drawings like the AB763 drawing on 8.5 x 14" legal size paper, but they still look good printed on 8.5" x 11" paper.

This topic on my amp forum describes how to print 8.5 x 22 inch extra large drawings - How to print really large layout diagrams


Thank you for visiting this page. You are visitor number





Home - Ordering Information - Ordering Information - PayPal info - Returning parts - Search the Hoffman Amps parts catalog
Q and A - Links - Shipping Info/policy - E-mail Me - Amplifier Service Technicians - About Hoffman Amps
Sound Clips - LED Bike light build info - Guitar Rig and Behringer FCB1010 info
Create your own custom Turret lug board

The Tube amp Library of information - Charts - Diagrams - How To's - Projects
Click the link above for Tube amp info, Schematics, Board building information, Projects, Mods, Transformer diagrams, Photo's, Sound clips.
There are hundreds of pages of Tube amp information on my library page.
Check out our huge library of Tube Amp Schematics here

Please visit my Tube Amplifier Forum
Here's the place you can go to ask tube amplifier questions.
You will find a large community of friendly amp builders at the link above.

@ MEMBER OF PROJECT HONEY POT
Spam Harvester Protection Network
provided by Unspam
